Debug [Text]

Output

Error texts are output here. These may e.g. with the "Log window" component. Attention: Diagnosis or debug outputs are only intended for the case of an error. Please use only after consultation with the support team! These may significantly affect the performance of the service when used

Debug Verbose

Input

To (de) enable advanced debug output. The diagnostic information is displayed there, linked to the [Signal] input of the log window.

DLM

Bidirectional

Connection to the Dynamic load management Component.

Update report history

Input

Manually triggers the saving of the report history to the export file.

Update Reports

Input

Triggers an update of all reports.

Driver On/Off

Bidirectional

(De) Activate the component

Driver state

Output

Returns the on / off status of the driver.

Commands

Folder

- Cancle Authorization

Input

Ends the authorization session.

- Send Authorization  - Trigger

Input

Starts the authorization request with the previously specified RFID TAG / RFID-CLASS data

- Send Authorization [RFID Class]

Input

Specification of the RFID CLASS (10 byte HEX string) to start a authorization

- Send Authorization [RFID TAG]

Input

Specification of the RFID TAGS (8-byte HEX string) to start an authorization

- Limit Energy [Wh]

Input

Sets the energy limit for the current or next charge session.

- Geräteanschluss entriegeln

Input

Unlocks the device connection (charging must be completed before)

- Limit current (direct) [A]

Input

Limits the charging current.

- Limit current (delayed) - Trigger

Input

Sends the delayed load current limit command

- Limit current (delayed) - current [A]

Input

Specification of the maximum charging current, which becomes active after a delay to be defined

- Limit current (delayed) -

Delay [s]

Input

Specification of the delay in seconds

Unlock Device Socket

Input

(De) Activates the charging station (permanent)

X2 Relay Terminal open/close

Input

Opens / closes the X2 terminal relay

History (0-30)

Folder

- Interruption-Reason

Output

0 = charging was not completed, 1 = plug was pulled, 10 = RFID card was de-authorized.

- End (Seconds from System start)

Output

Displays the seconds from system start to end of session.

- End (timestamp)

Output

Returns the end time.

-Total energy at start [kWh]

Output

Returns the total energy value at the start time.

- Maximum current (Hardware) [A]

Output

Returns the maximum device output current in amps.

- RFID Class

Output

Shows the RFID class of this session.

- RFID Tag

Output

Displays the RFID tag of this session.

- Session ID

Output

System generated ID for the loading process

- Start (Seconds from System start)

Output

Displays the seconds from the system start to the start of the session.

- Start (timestamp)

Output

Returns the start time

- Transfered energy in session [kWh]

Output

Transferred energy in the session

States

Folder

- Outputs-Value

Output

Setting for X2 relay terminal: 0 = closed, 1 = open,> = 10 = pulse output (number stands for pulse / kWh)

- Authorization required

Output

Indicates whether authorization is needed.

-Authorization function activated

Output

Indicates whether the authorization function is enabled or not.

- Backend present

Output

Indicates whether communication with the backend takes place (1) or not (0).

- Energy to deliver [kWh]

Output

Output of the set energy to be transmitted in kWh.

- Failsafe Timeout [s]

Output

Outputs the timeout for the emergency mode

- Error 1

Output

Internal error from the charging station (for the manufacturer support)

- Error 2

Output

Internal error from the charging station (for the manufacturer support)

- Firmware

Output

Displays the current firmware version.

- Device activated

Output

Indicates the activation state of the device

- Communication module present

Output

Indicates if a communication module exists

- Charging current [A]

Output

Returns the current charging current.

- Charging current after delay [A]

Output

Outputs the charge current after the delay.

- Delay [s]

Output

Returns the set delay in seconds.

- Maximum device current [A]

Output

Returns the maximum device current in amps.

- Maximum current - PWM Duty Cycle [%]

Output

Specifies the% value of the PWM at the maximum current.

- Maximaler Strom [A]

Output

Returns the maximum output current in amps.

- Maximum current during Failsafe mode [A]

Output

Outputs the maximum output current in AmpSafe mode in FailSave mode.

- Product name

Output

Returns the product name.

- Serial

Output

Returns the serial number of the charging station.

- System enabled (charging can be activated)

Output

Indicates whether the system is activated or not.

- Uptime [s]

Output

Returns the update time in seconds.

- Time sync quality

Output

At "0" the device is not in sync time. At 1, the sync is good (with NTP, OCPP and Proxy) and at 2 moderate (with web interface and UDP).

- State of the  X1-Input

Output

See manufacturer's manual.

Plug State

Folder

-- Cable plugged in station (not locked)

Output

Represents the decoded single state (1).

-- Cable plugged in station (locked)

Output

Represents the decoded single state (3).

-- Cable plugged in station and car (not locked)

Output

Represents the decoded single state (5).

-- Cable plugged in station and car (locked)

Output

Represents the decoded single state (7).

-- No cable plugged

Output

Represents the decoded single state (0).

-- Plug state value

Output

Returns the status as a byte (0, 1, 3, 5, 7).

Measurements

Folder

-- Power [W]

Output

Returns the current MessValue Off.

-- Power factor

Output

Returns the current power factor.

-- Voltage Phase 1 [V]

Output

Returns the current reading in volts.

-- Voltage Phase 2 [V]

Output

Returns the current reading in volts.

-- Voltage Phase 3 [V]

Output

Returns the current reading in volts.

-- Current Phase 1 [A]

Output

Returns the current reading in Amps.

-- Current Phase 2 [A]

Output

Returns the current reading in Amps.

-- Current Phase 3 [A]

Output

Returns the current reading in Amps.

-- Transmitted energy during this session [kWh]

Output

Returns the current reading in watt-hours.

--  Transmitted energy (total)[kWh]

Output

Returns the current reading in watt-hours.

State

Folder

-- Ready to charge

Output

Represents the decoded single state (2).

-- Error

Output

Represents the decoded single state (4).

-- Charging

Output

Represents the decoded single state (3).

-- Charging interrupted

Output

Represents the decoded single state (5).

-- Not ready to charge

Output

Represents the decoded single state (1).

-- Startup

Output

Represents the decoded single state (0).

-- State value

Output

The status value DP outputs the status as a byte (0-5).

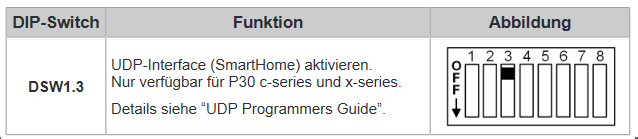

Local IP Address

IP address of the local interface to be used (network card)

Device IP Address

IP address of the charging station to be queried

Update Interval Report 1 [s]

3600

Polling interval for Report 1 (static information)

Update Interval Report 2 [s]

10

Polling interval for Report 2 (status information)

Update Interval Report 3 [s]

5

Polling interval for Report 3 (readings during a load). It should be noted that this report is only executed in the specified interval if the status from Report 2 indicates an active loading process.

Connection check Interval [s]

30

Interval for the cyclic connection check.

Reply Timeout [s]

2

Timeout for the response of a query

History Export File

Specification for the storage path of the history data.

Driver On/Off

(DE) Activate the component
