Pushbutton, 3x metal frame WS33

Pushbutton, 3x metal frame WS33

Order number: AM-SIK-3000-16

Prices visible to resellers only Register as a reseller

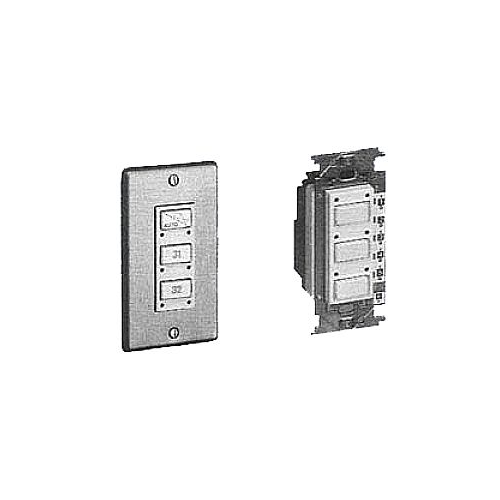

For decentralised connection to the 2-core i-BUS cable, complete push-button element with integrated electronics and front panel for installation in surface-mounted or flush-mounted box

Description

For decentralised connection to the 2-core i-BUS cable, complete push-button element with integrated electronics and front panel for installation in surface-mounted or flush-mounted box, adjustable address, with LED display, the keys WS 1 and WS 11 or 1 key of the key types WS 2 ... WS 33 can be programmed as an automatic / manual changeover switch.

Dimensions: Frame (HxW): 120x70mm
Installation dimension (HxWxD): 70x45x32mm
Total height: 40mm

With 3 pushbuttons WS 33: lower address range (94 ... 144)
