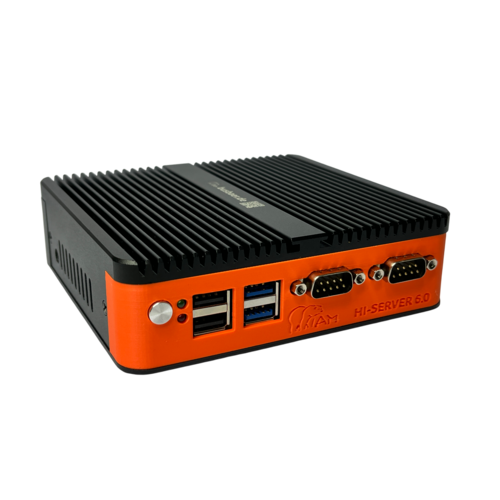

EisBaer HI-Server 6.0

EisBaer HI-Server 6.0

Compact EisBaer stand-alone server for continuous 24/7 operation as an industrial built-in device. Specially optimized for EisBaer license sizes Pro Domo, Starter, Professional, and Architect, and designed for high performance with very low power consumption. The HI-SERVER 6.0 can be flexibly installed as a distribution unit, stand-alone device, or mounted directly on the back of a monitor using the optional VESA mounting kit.

Typical areas of application for the HI 6.0 are: visualization and control room PCs as EisBär servers and/or clients in continuous operation, automation and building management technology, Internet and information terminals, and many other applications. With significantly lower energy consumption than standard PCs, the EisBär HI-Server 6.0 permanently reduces operating costs. The very compact dimensions make it easy to place the visualization computers in cramped control cabinets and technical centers.

The fanless design in combination with a solid state disk (SSD) enables virtually maintenance-free continuous operation without mechanically moving components. The HI Server is our recommendation as a standard device for a wide range of EisBär applications in private and commercial environments – also as a modular computer unit for the EisBär EisTouch HI Generation 3, 4, and 5 touch panel series.

With the optional VESA mounting kit, the server can be easily adapted to monitors, support arms, special brackets, and special structures. A suitable 19“ mounting rack is available as an option for installation in 19” server cabinets.

Connection to KNX is particularly easy via external interfaces: either via a network connection to an EIB/KNX IP interface or IP router, or via an EIB/KNX USB interface.

Thanks to numerous communication interfaces such as LAN, WLAN, and four USB ports, many systems and protocols from building and automation technology (e.g., Modbus, digitalSTROM, OPC, etc.) can be easily connected and operated directly with the pre-installed EisBaer Suite under Windows 10.

EisBaer HI-Server 6.0

- Fanless, passive cooling
- Intel® Celeron N100 processor (Turbo 3.4Ghz)
- Intel® UHD Graphics 600
- 16 GB DDR4 RAM
- 128 GB NVME SSD
- Operating system: Windows 11 Professional

- Power supply: 12 V DC SELV
- Energy efficient TDP 10 watts (max. consumption: 25W)
- Compact, robust, and low maintenance
- 2x USB 3.0 and 2x USB 2.0
- 2x RS232 COM
- 2x Ethernet (10/100/1000 Mbit)
- 1x HDMI 1.4 / 1x VGA

- Operating temperature: -10°C to 60°C
- Humidity: 30 - 90%, non-condensing
- Device dimensions: 135*127*39mm / 8 TE
- FCC Class B, UL, CE, and RoHS compliant

Scope of delivery: EisBaer HI-Server 6.0 with Windows 11 Professional, 12V power supply, set up and tested ready for operation

• Optional: EisBaer HI-Server – VESA mounting kit
• Optional: EisBaer HI-Server – DIN rail mounting kit
• Optional: EisBaer HI-Server – 19" 1.5U mounting rack
• Optional: WLAN 802.11ac + BT

Product datasheet

OPTIONAL

• EisBaer HI-Server – VESA mounting kit
• EisBaer HI-Server – DIN rail mounting kit
• EisBaer HI-Server – 19" 1.5U mounting rack
• EisBaer HI-Server - WLAN 802.11ac + BT
