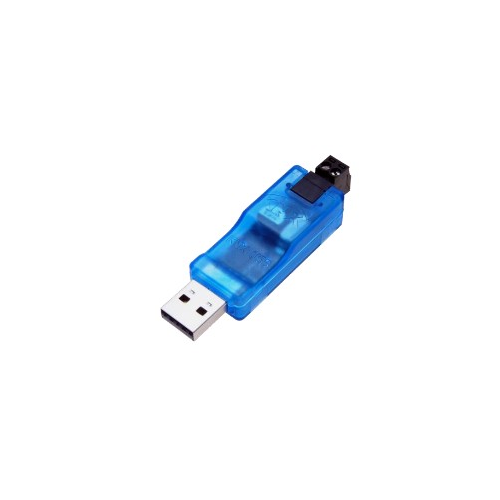

KNX Interface - USB-Stick
Order number: AM-EIS-360-21
€ 236,81
incl. 19% GST.plus Delivery costs (0.5 kg)
KNX Interface - USB-Stick
Cart
- Description
- Technical data
KNX Interface - USB-Stick
The USB interface enables communication between the PC and the EIB system.
The LEDs in the device indicate the operating status and communication errors on the bus. The USB interface can be used with ETS3 V1.0 and above and supports KNX long frames. Long telegrams enable faster downloads to devices that can receive these telegrams. The USB connection is galvanically isolated from the KNX bus.
Technical data:
Control and display elements ▪ 2 LEDs (multicolor)
KNX ▪ Medium TP ▪ Interface protocol: HID/cEMI ▪ Max. APDU length: 233 ▪ Object server: BAOS V2 ▪ Device model: System B
Power supply ▪ USB < 10 mA ▪ KNX < 3 mA
Connections ▪ Terminal for KNX TP bus (pluggable screw terminal) ▪ Cable cross-section: 0.14..1.5 mm² ▪ USB plug type A
Cable length max. 5 m ▪ Scope of delivery incl. USB-C adapter
Electrical safety ▪ Protection class (according to EN 60529): IP20
CE marking according to ▪ EMC Directive 2014/30/EU ▪ RoHS Directive 2011/65/EU ▪ EN 63044-3: 2018 ▪ EN 63044-5-1: 2019, EN 63044-5-2: 2019, EN 63044-5-3: 2019 ▪ EN 61000-6-2: 2019, EN 61000-6-3: 2021 ▪ EN 63000: 2018
Environmental conditions ▪ Operating ambient temperature: -5..+45 °C ▪ Storage temperature: -25..+70 °C ▪ Relative humidity (non-condensing): 5..93 %
Mechanical data ▪ Housing: Transparent plastic (ABS) ▪ Dimensions 60 x 19 x 13 mm ▪ In plastic box 100 x 70 x 20 mm ▪ Weight: approx. 12 g
