CoDeSys V2.3

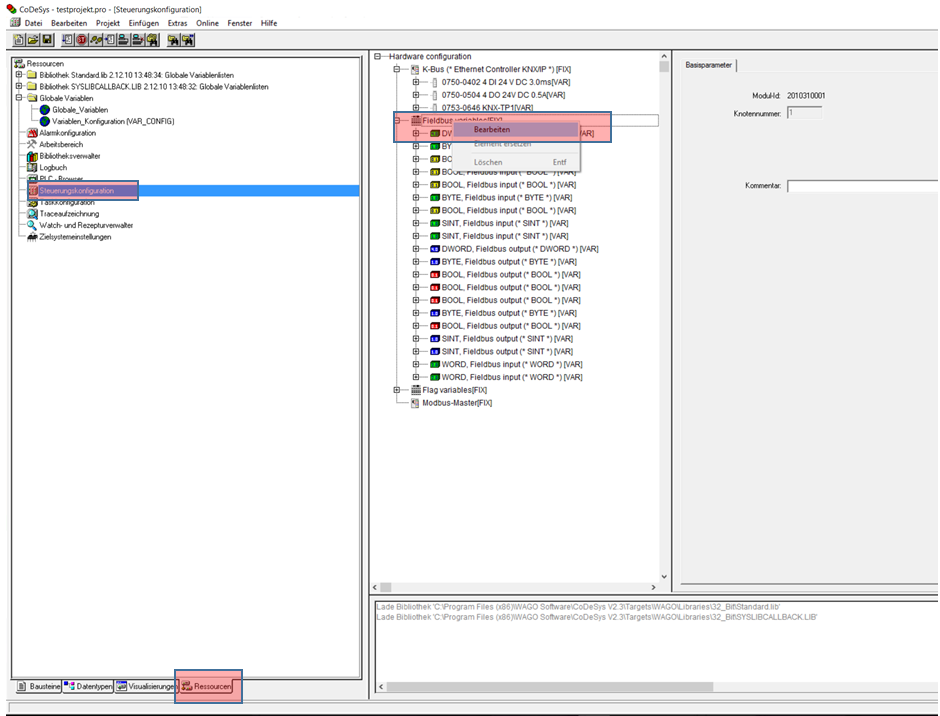

1. Create variables via the PLC configuration. Click path: Resources Tab -> PLC Configuration -> Fieldbus variables -> right click -> Edit

Fieldbus_variables

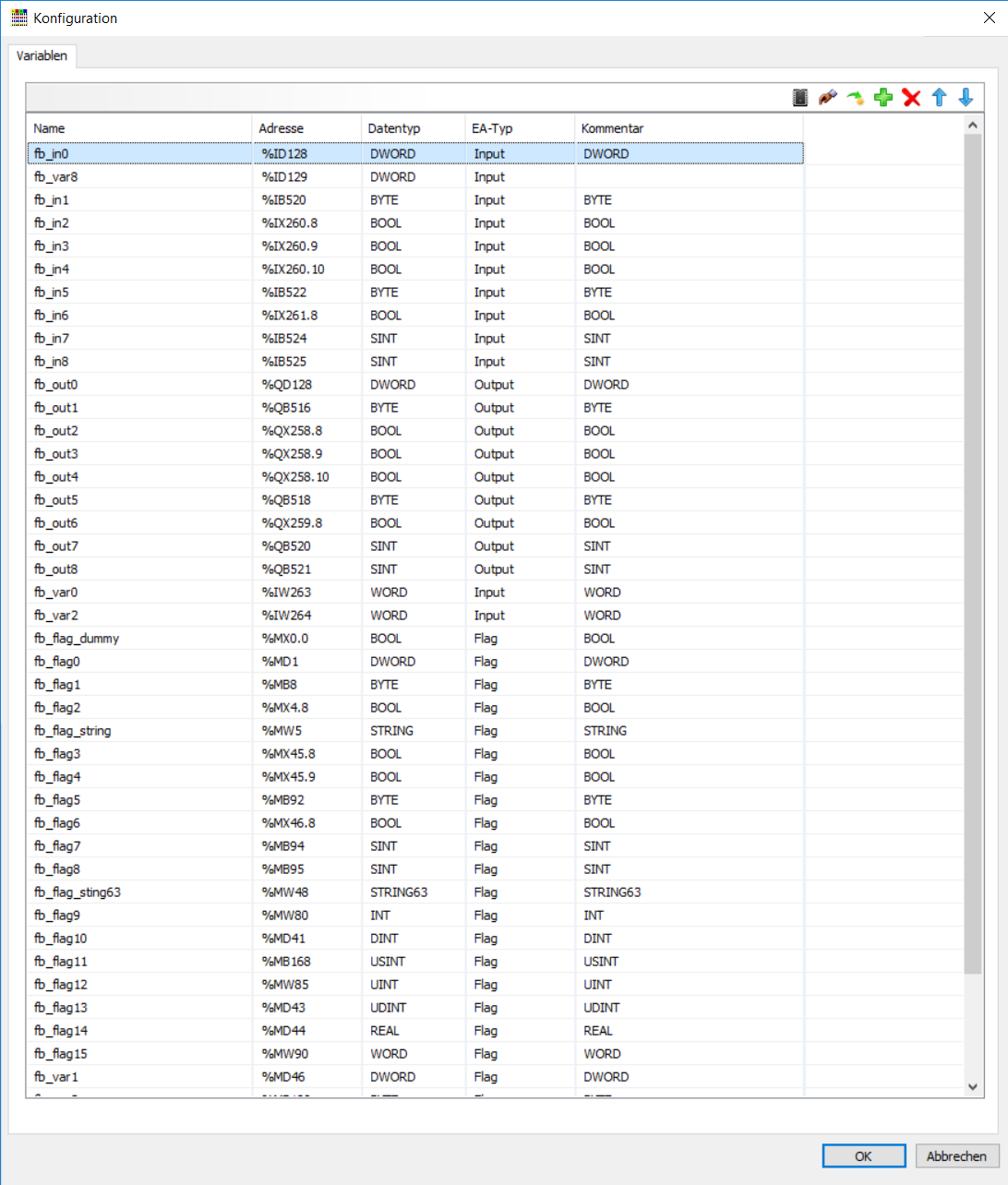

2. Create the required variables (input / output / flags) and confirm with OK



CodesysVariablen

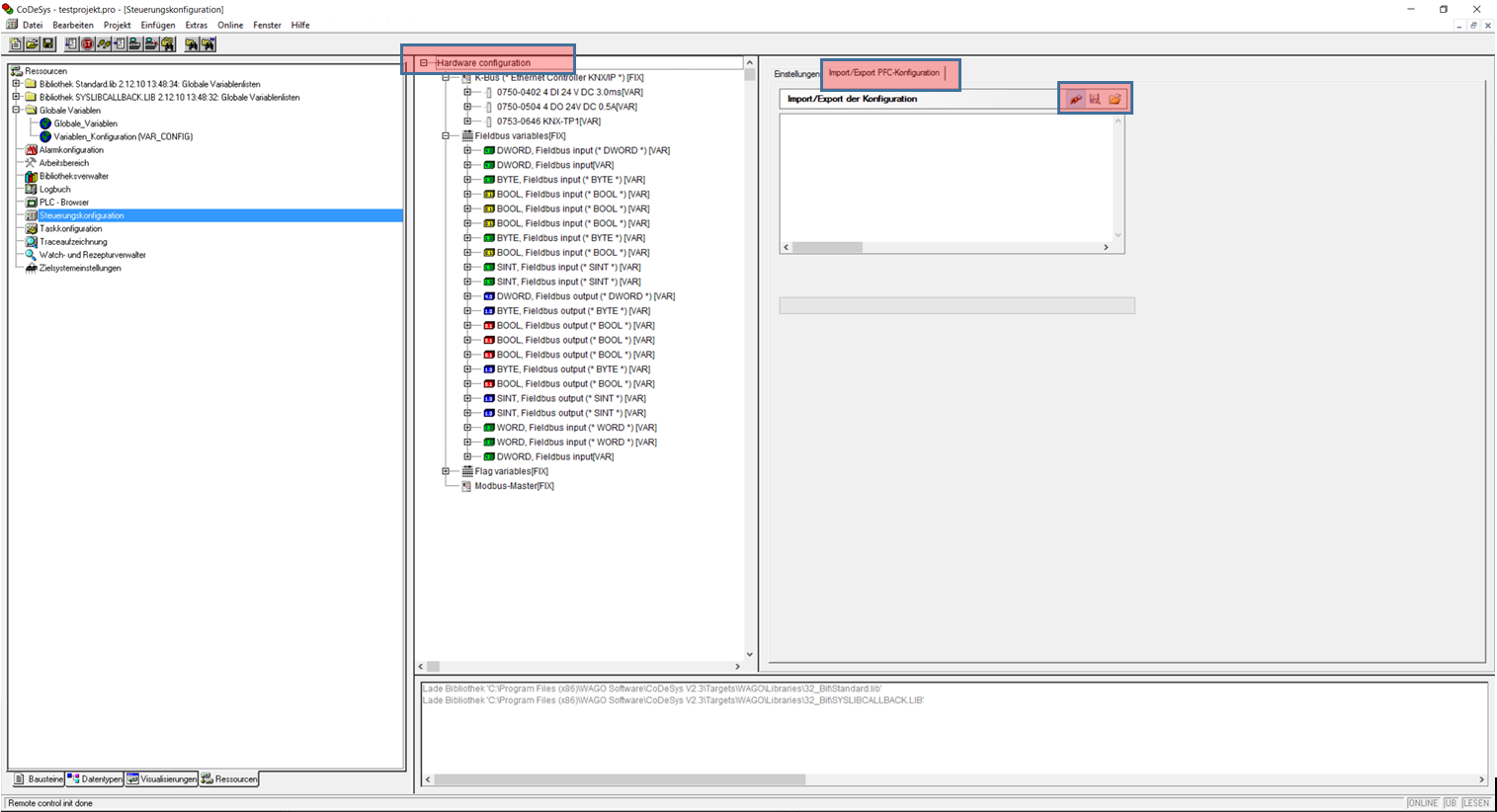

3. export; in addition Resources Tab -> PLC Configuration -> Hardware Configuration -> Import / Export PFC configuration



CodesysExport2

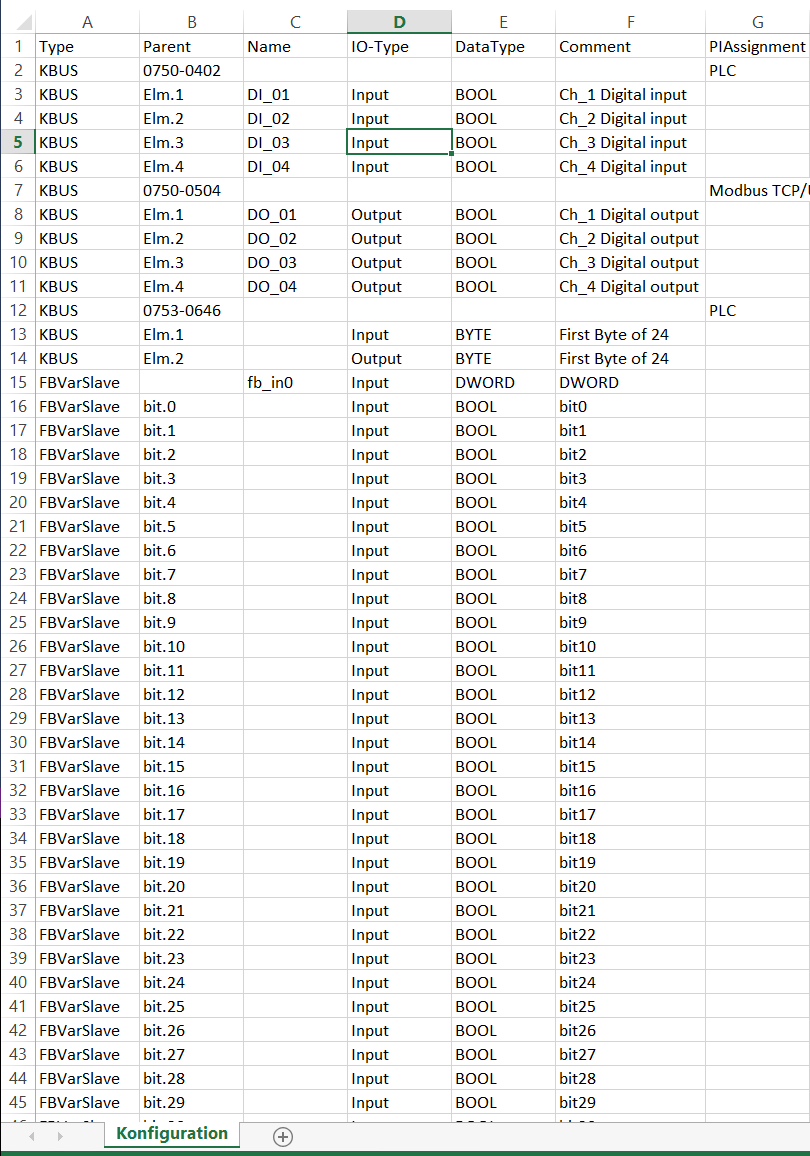

The exported config file can now be imported into the polar bear.



CodesysConfigFile
