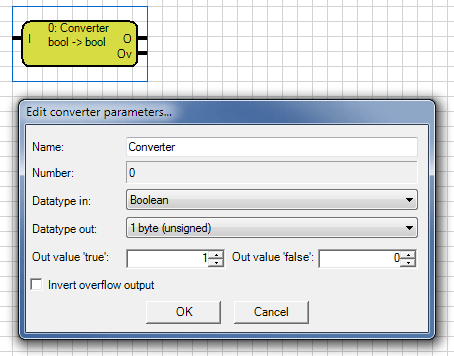

A converter converts the value at the input to any format at the output. If the input and output data type is larger than a boolean data type, a "Out value true "(the input is 1)
and a "Out value false "(the input is set 0) is set in the context of the data type. These values are then set at the output, depending on the input status.
If the check "Invert overflow output" is set, the output is 1 if no error or overflow exists. The input is marked with an I, and is left at the element.
The output is characterized by an O, is top right of the element. The name of the gate can be chosen freely.
Note: For input and output all data types are allowed.
