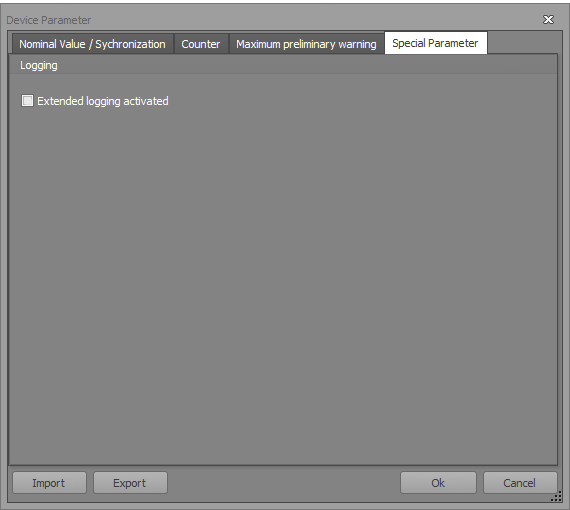

This parameter activates or deactivates the extended logging. If it is active, all relevant performance values of the maximum monitor are also written to the standard log.
Example:
1 03.10.2022 13:48:40 ML 55.6 kW;TL 60.1 kW;VL 50.4 kW;PL 112.0 kW
2 03.10.2022 13:48:50 ML 65.5 kW;TL 62.4 kW;VL 56.4 kW;PL 148.4 kW
3 03.10.2022 13:48:59 Measurement period stop
4 03.10.2022 13:48:59 Measurement period start
5 03.10.2022 13:49:09 ML 62.2 kW;TL 62.7 kW;VL 5.7 kW;PL 70.1 kW
6 03.10.2022 13:49:19 Trend power exceeded
7 03.10.2022 13:49:19 ML 72.0 kW;TL 72.3 kW;VL 12.3 kW;PL 69.2 kW
8 03.10.2022 13:49:29 ML 45.8 kW;TL 50.9 kW;VL 16.5 kW;PL 71.3 kW
9 03.10.2022 13:49:40 ML 58.9 kW;TL 61.2 kW;VL 21.9 kW;PL 72.2 kW
ML = instantaneous power
TL = Trend power
VL = Period power accumulated
PL = Period power available
