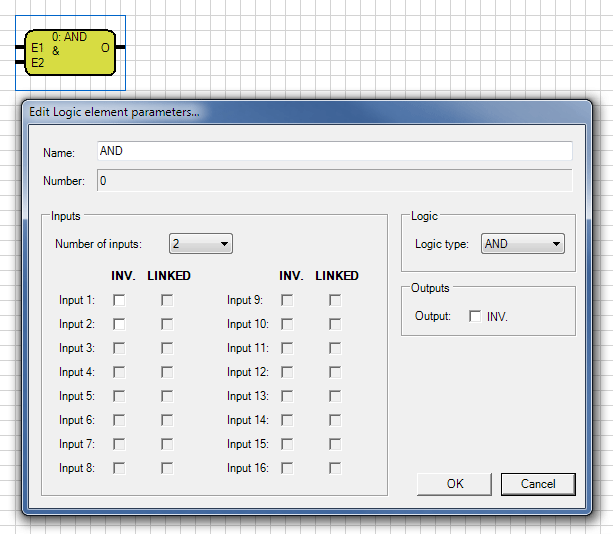

An AND gate sets the output value to 1 if all inputs have the value 1. An AND gate has up to 16 inputs and one output. When creating the gate has 2 inputs and one output. The number of inputs can be adjusted in the
pull-down menu, number of inputs. The inputs and the output can be inverted. This can be set within the parameter window, or by double-clicking on the connectors. The inputs of the AND gate can be linked with an input object or an output of an other component. The output of a gate can be connected with an output, or to an input of another component. A gate output can be connected with several gate inputs. The inputs are located on the left side of the element. The inputs are invertible. This may be made within the parameter window or by double-clicking the connection. The name of the gate can be chosen freely.
Note: Only 1-bit objects (boolean) are permitted at the inputs and the output of the AND gate..
