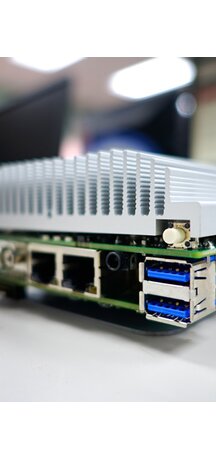

EisEdge 5.0 €1367. 31 incl. GST. €1149.00  excl. GST. EisBaer SCADA server for DINrail installation Our EisBaer SCADA server for DINrail installation, optimized for a 24/7 continuous operation at a central location in the electrical distribution board EisBaer SCADA preinstalled (without project license) Technichal Specification CPUIntel Celeron J3455 RAM4GB HDD64GB GRAPHIC CARDDual Head 4k display FANLESS POWER CONSUMPTIONmax. 14 Watt  OPERATING SYSTEMWindows 10 IoT CONNECTIONS KNX TP1 TERMINAL HDMI/mini DP1/1 USB 2.0 / USB 3.02/2 LAN2x Gigabit POWER SUPPLY CASING MATERIALAluminium MASSE 112 x 84 x 34mm WEIGHT550 gr. ACCESSORIES (optional) HI-Server 4.0 Power Supply Funk-Service Keyboard USB-Service display 14"  WARRENTY EXTENSION / PRE-REPLACEMENT Online shop

Technichal Specification

CPU	Intel Celeron J3455

RAM

4GB

HDD

64GB

GRAPHIC CARD

Dual Head 4k display

FANLESS

POWER CONSUMPTION

max. 14 Watt

OPERATING SYSTEM

Windows 10 IoT

CONNECTIONS

KNX TP1 TERMINAL

HDMI/mini DP

1/1

USB 2.0 / USB 3.0

2/2

LAN	2x Gigabit

POWER SUPPLY

CASING

MATERIAL

Aluminium

MASSE

112 x 84 x 34mm

WEIGHT

550 gr.

ACCESSORIES (optional)

HI-Server 4.0 Power Supply

Funk-Service Keyboard

USB-Service display 14"

WARRENTY EXTENSION / PRE-REPLACEMENT

PDF
