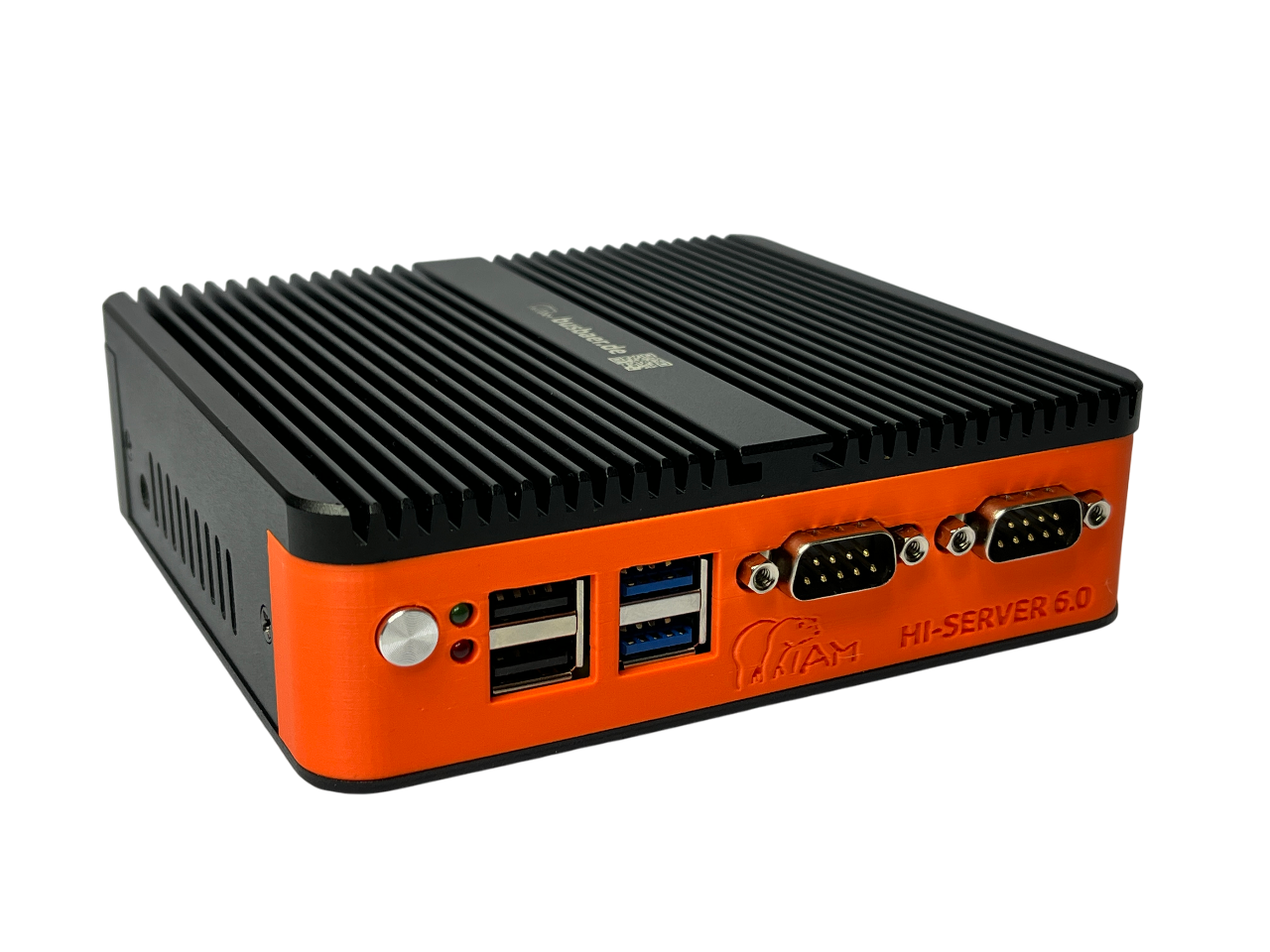

MINI PC with excellent price/performance ratio. Our bestseller and all-rounder for our EisBär V3 suite.
Optimized
continuous operation as an industrial
built-in device, for license sizes
EisBär Pro Domo, Starter, Professional, and Architect.
EisBär V3 SCADA preinstalled
(without project license).

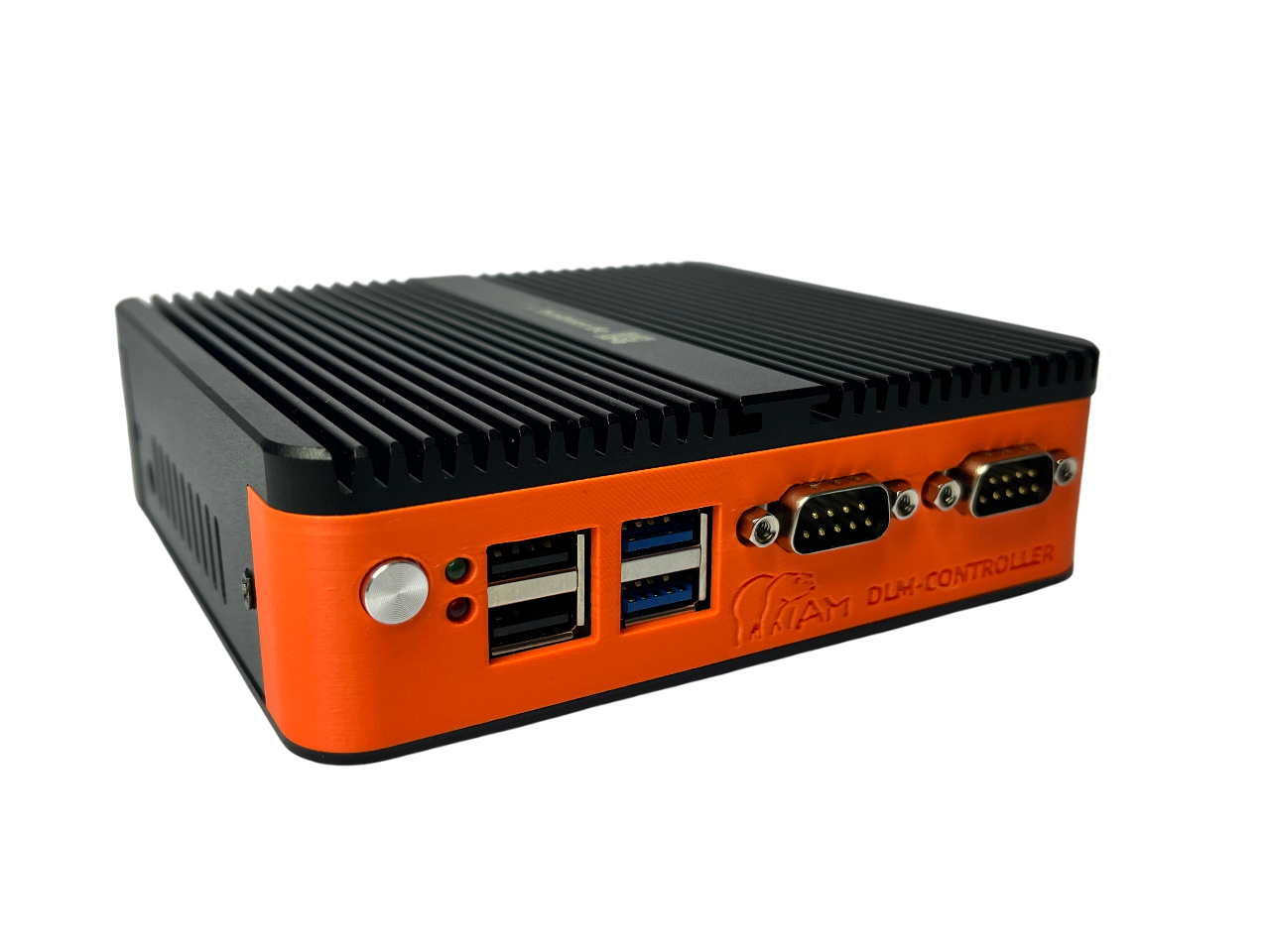

DLM controller for dynamic load management with 6 charging points (expandable)
for distribution panel installation, including DIN rail adapter. Optimized
continuous operation as an industrial
built-in device, for license sizes
EisBär Pro Domo, Starter, Professional, and Architect
EisBär V3 SCADA preinstalled
(without project license)

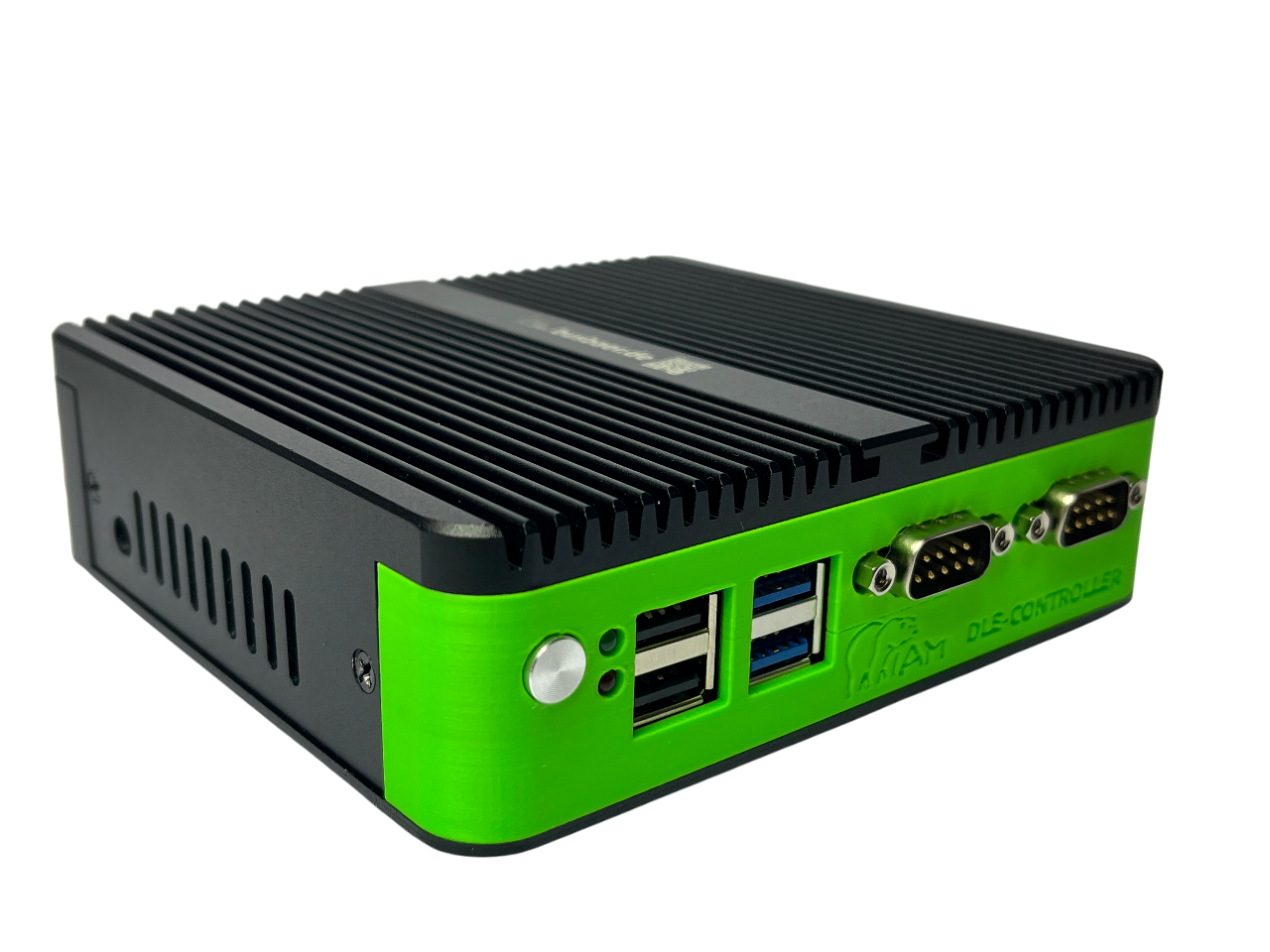

DLE controller for 6 instantaneous water heaters (expandable)
for distributor installation, including DIN rail adapter. Optimized
continuous operation as an industrial
built-in device, for license sizes
EisBär Pro Domo, Starter, Professional, and Architect
EisBär V3 SCADA preinstalled
(without project license)
| HI-Server 6.0 | DLM-Controller | DLE-Controller | |
|---|---|---|---|
| CPU | Intel® Celeron® Prozessor N100 | Intel® Celeron® Prozessor N100 | Intel® Celeron® Prozessor N100 |
| RAM | 16GB | 16GB | 16GB |
| HDD | 128GB NVME SSD | 128GB NVME SSD | 128GB NVME SSD |
| GRAPHIC CARD | Intel® UHD 600 | Intel® UHD 600 | Intel® UHD 600 |
| FANLESS | ✓ | ✓ | ✓ |
| POWER CONSUMPTION | TDP 10 Watt | TDP 10 Watt | TDP 10 Watt |
| OPERATING SYSTEM | Windows 11 Professional | Windows 11 Professional | Windows 11 Professional |
| HI-Server 6.0 | DLM-Controller | DLE-Controller | |
|---|---|---|---|
| HDMI/VGA/DP | 1/1/0 | 1/1/0 | 1/1/0 |
| MIC IN/AUDIO OUT | 1/1 | 1/1 | 1/1 |
| COM/SERIELL | 2 | 2 | 2 |
| USB 2.0 | 2 | 2 | 2 |
| USB 3.0 | 2 | 2 | 2 |
| LAN | 2x Gigabit | 2x Gigabit | 2x Gigabit |
| POWER SUPPLY | 1x 12V DC | 1x 12V DC | 1x 12V DC |
| HI-Server 6.0 | DLM-Controller | DLE-Controller | |
|---|---|---|---|
| MATERIAL | Aluminium | Aluminium | Aluminium |
| SIZE (WxLxH) | 135 x 127 x 39mm / 8TE | 135 x 127 x 39mm / 8TE | 135 x 127 x 39mm / 8TE |
| WEIGHT | 800 gr. | 800 gr. | 800 gr |
| HI-Server 6.0 | DLM-Controller | DLE-Controller | |
|---|---|---|---|
| VESA-BRACKET | ✓ | ✓ | ✓ |
| 19" MOUNTING RACK | ✓ | ✓ | ✓ |
| RF-Service Keyboard | ✓ | ✓ | ✓ |
| USB service screen 14 " | ✓ | ✓ | ✓ |
Visualisation, tools and hardware for KNX, Modbus & building automation.
