Instructions for setting up a GIRA-TKS door communication system in the EisBaer SCADA
Excerpt from GIRA TKS IP Gateway manual
Notes on operation and commissioning of IP telephones
In the configuration of the IP telephone, the following settings must be made:
IP Port |
5060 |
|---|---|
Audio |
PCMU/PCMA |
Video |
H.264 |
Format |
QVGA bzw. 320x240 |
IP Server |
IP-Address of the TKS-IP-Gateway |
IP User |
Username under menu item IP Phone in the GIRA Assistant |
IP Password |
Password under menu item IP-Phone in GIRA Assisstent "IP-User" and "IP-Password"; must match the settings in the TKS-IP gateway |
Trigger the door opener function via the IP telephone
If "* 0" is pressed after a door call, the door opener function is activated.
Requirements:
• The TKS actuator has been assigned to the corresponding door.
• The IP telephone must use SIP Info or RTP (RFC2833) as the DTMF transmission method. The EisBar client uses the RTP transmission method
• DTMF via inband is not supported by the TKS IP gateway.
commissioning examples

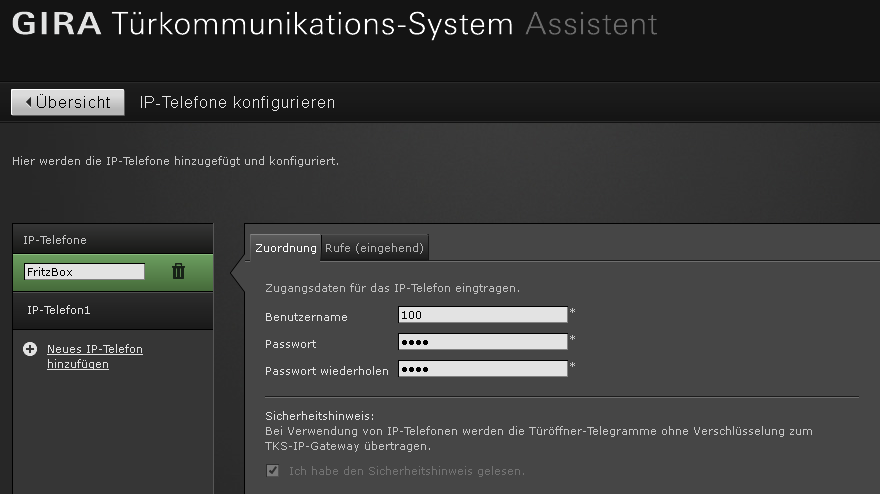

Important: The IP addresses shown in the following screenshots may differ depending on the network.
Properties
Name |
Standard |
function |
|---|---|---|
Registration Required |
x |
If the check mark is set, the video door station must be registered with the proxy (switchboard / exchange) with name and password. |
Display Name |
TKS-IP-Gateway |
Any name that is displayed when connecting to the remote station. |
User Name |
100 |
Name of the user in the server domain. Mostly identical to the registration name. |
Register Name |
100 |
Name for registration at the proxy. |
Password |
100 |
Password for registration at the proxy server (switchboard / exchange). |
Domain Server Host |
192.168.100.16 |
Domain of the Proxy, sometimes referred to as Realm. In many cases, the IP address of the proxy is also entered here. |
Proxy IP |
192.168.100.16 |
IP address of the proxy server (switchboard / exchange). |
Proxy Port |
5060 |
SIP port of the proxy server for registration. |
DTMF Key |
*0 |
DTMF signal tone sent to open the door. |
DTMF Light |
|
DTMF signal tone sent to switch the lighting. |
Number |
|
Internal number or name of the station on the proxy server (switchboard / exchange). |
IP Camera URL/Pfad zum MJPG-Stream |
|
URL / path to the MJPG stream in the IP camera, e.g. http: // <IP> / <xxxx.mjpg path /> |
IP Camera User Name |
|
Username to log in to the camera if anonymous access is not possible. |
IP Camera Password |
|
Password of the user to log in to the camera. |
IP Camera Pictures per Second (0-20) |
5 |
Refresh rate of the image display. The set number of pictures of the camera is displayed, per second. 0 = speed of IP camera |
