Siedle Smart Gateway 650
The screenshots / instructions require an already finished system with Smart Gateway 650.

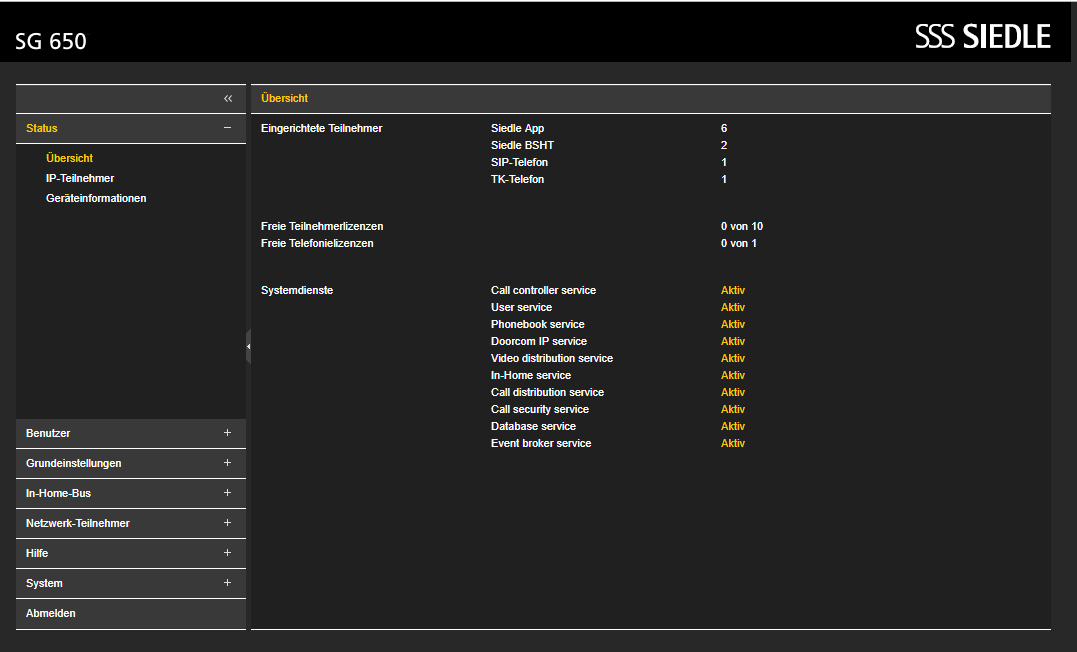

Log in SG650

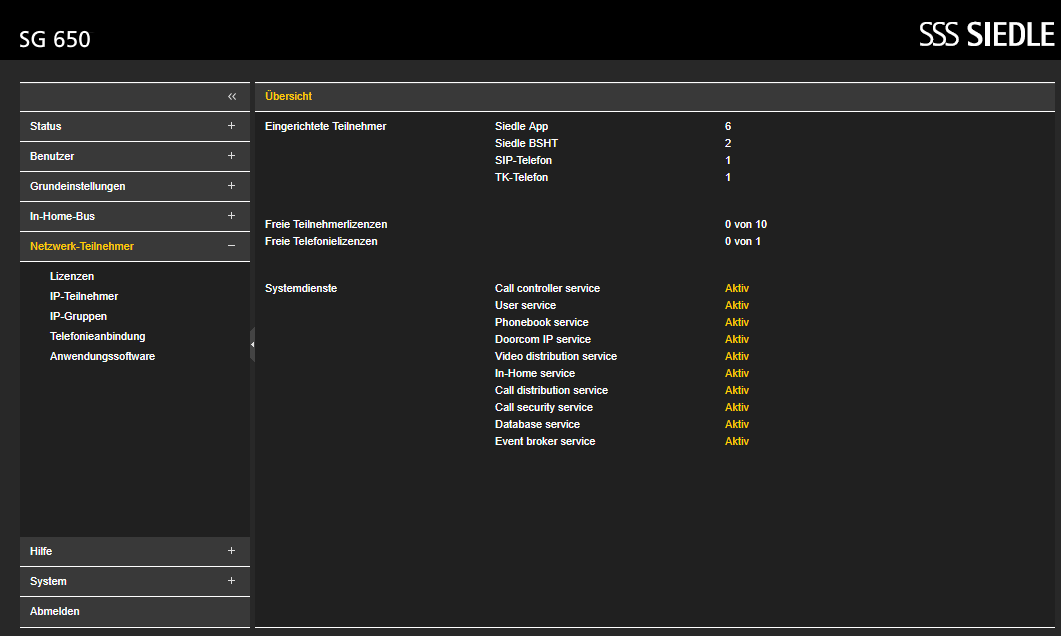

Switch to network participants

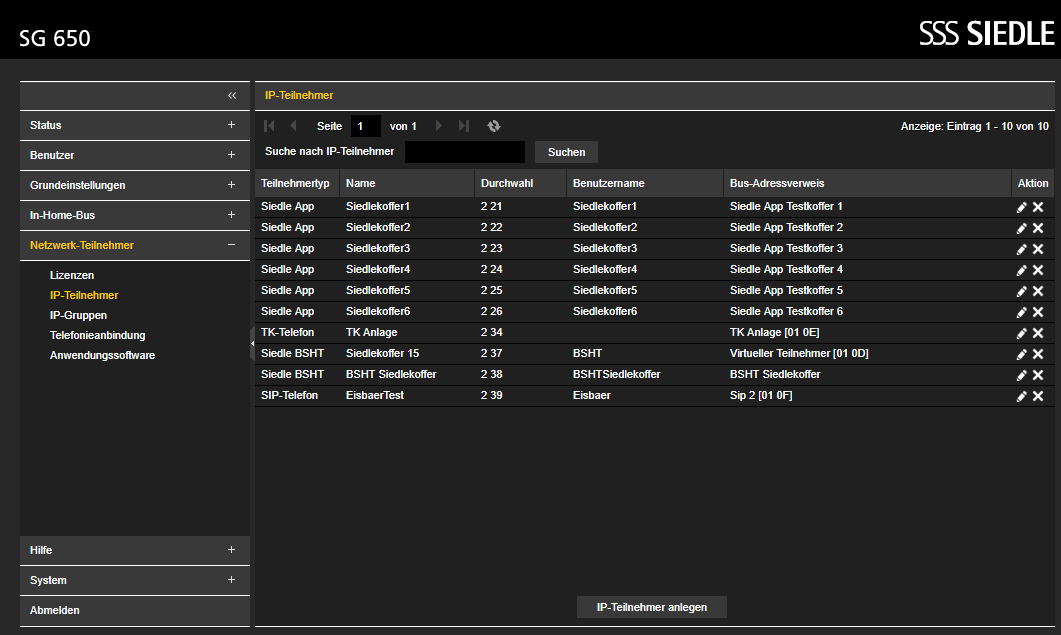

Now switch to "IP subscribers"

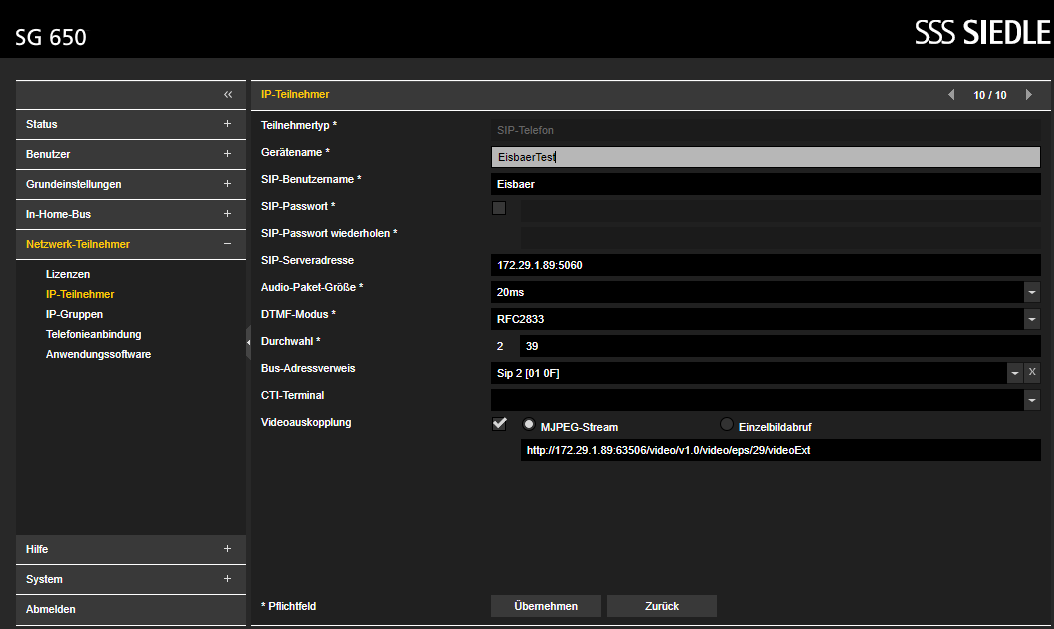

Create IP subscribers

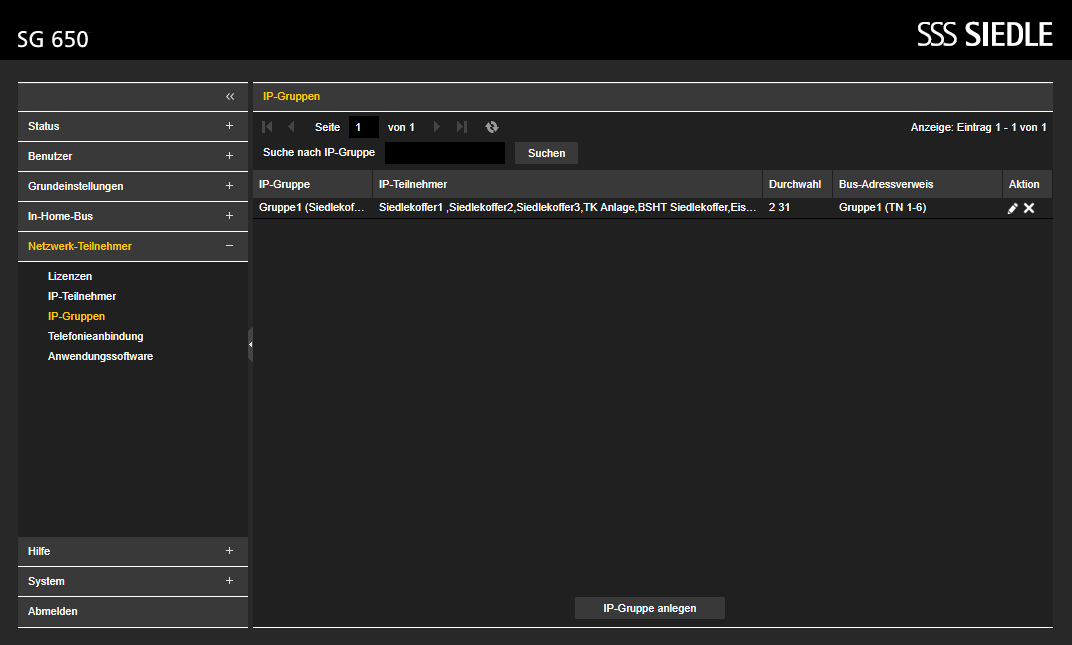

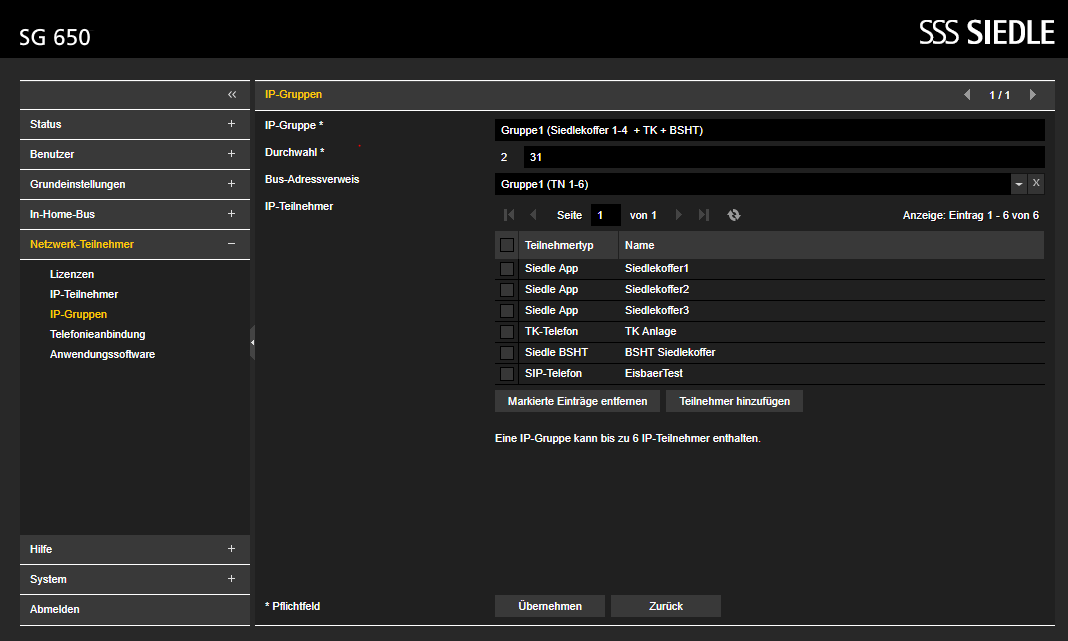

Then switch to IP groups.
There is an upper limit of 6 participants. With a second SG650 it can be extended to 12 participants.
Here in the example other devices are configured.

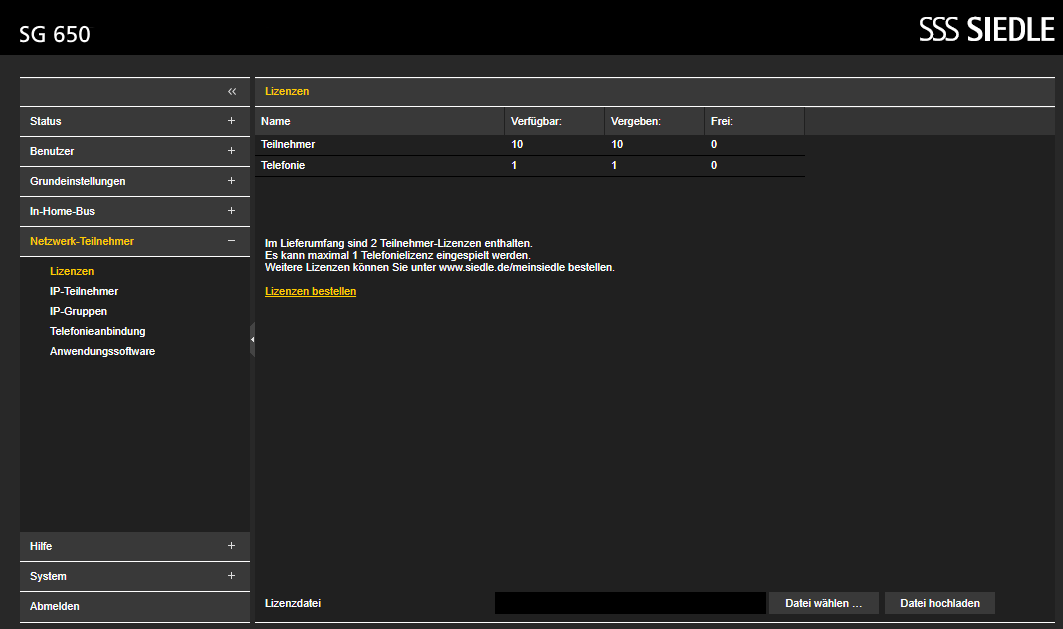

The prerequisite for this configuration is correct licensing of the system.

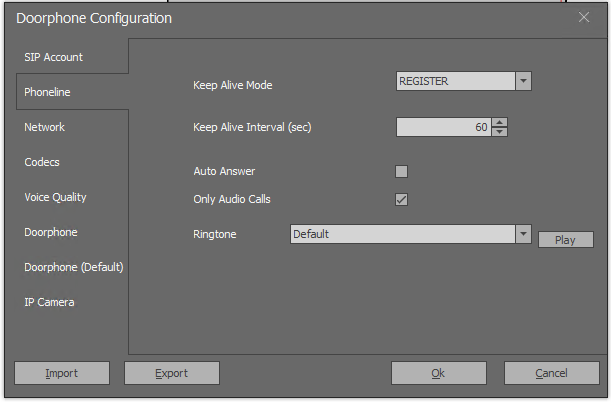

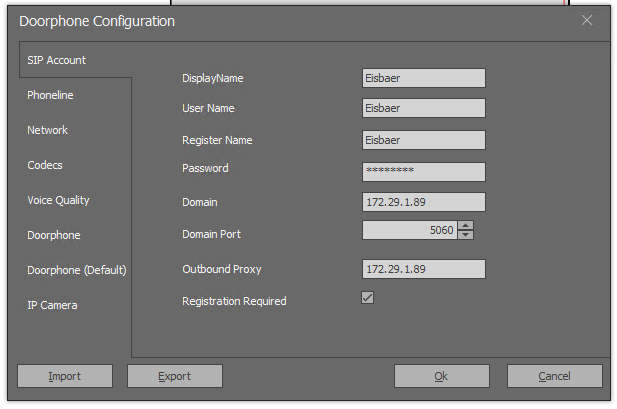

EisBaer Setup:
IP Camera remains empty, as Siedle does NOT provide a SIP video stream. Instead, the "IP Camera and Media Display" can be used.

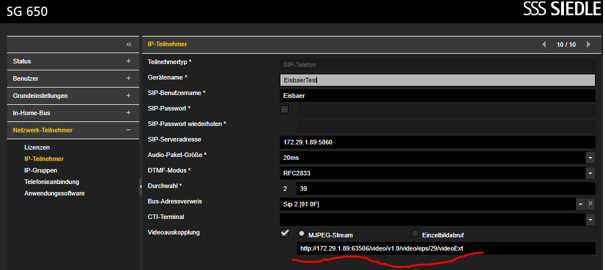

In the case of the media source, the path that is displayed when creating the participant is entered accordingly.
Username / password is not required, the camera stream is ONLY issued when the connection is established.
