The oscillator generates periodic rectangular signals. The cycle time (Z) and the pulse width (P) can be set internally and externally.
A change in the input value at the Z or P input will not be effective until the beginning of the next period (with a rising edge at the A output).
The output A \ corresponds to the inverted state of the output A.
The inputs of the gate can each be connected to an input object or to an output of another function. The outputs of the gate can be connected to an output, or an input of another function. A gate output can be connected to several gate inputs.

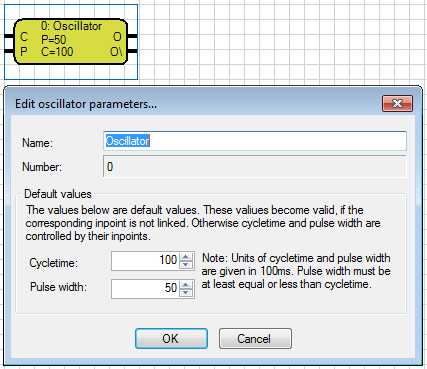

The inputs are marked Z and P and are located on the left side of the element.
The outputs are marked A and A \, they are located at the top right of the element.
The name of the gate can be chosen freely.
Note: The inputs are of the data type 2Byte (unsigned). The outputs are of the data type Boolean.
