The AVS2100 is a SIP server from René Koch AG. On a touch panel, the use of the USB sound card is recommended.
IP Scanner Search finds the manufacturer: "TurControlSystme AG".
Settings in the SIP server --> VoIP settings:

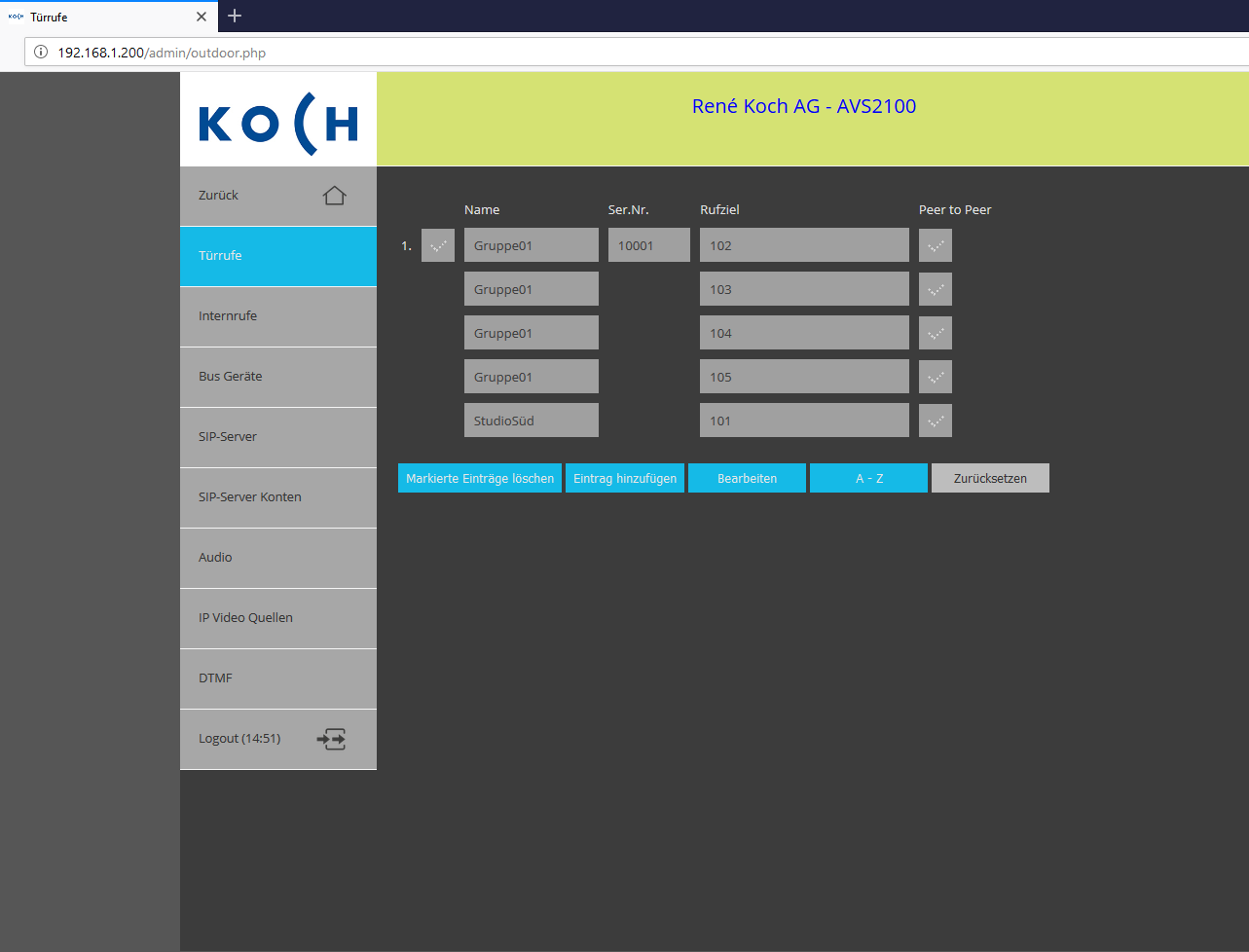

One or more group calls of up to 5 participants can be set. The serial number is the number of the bell button on the front-door station. The call destination is the SIP number of the recipients.

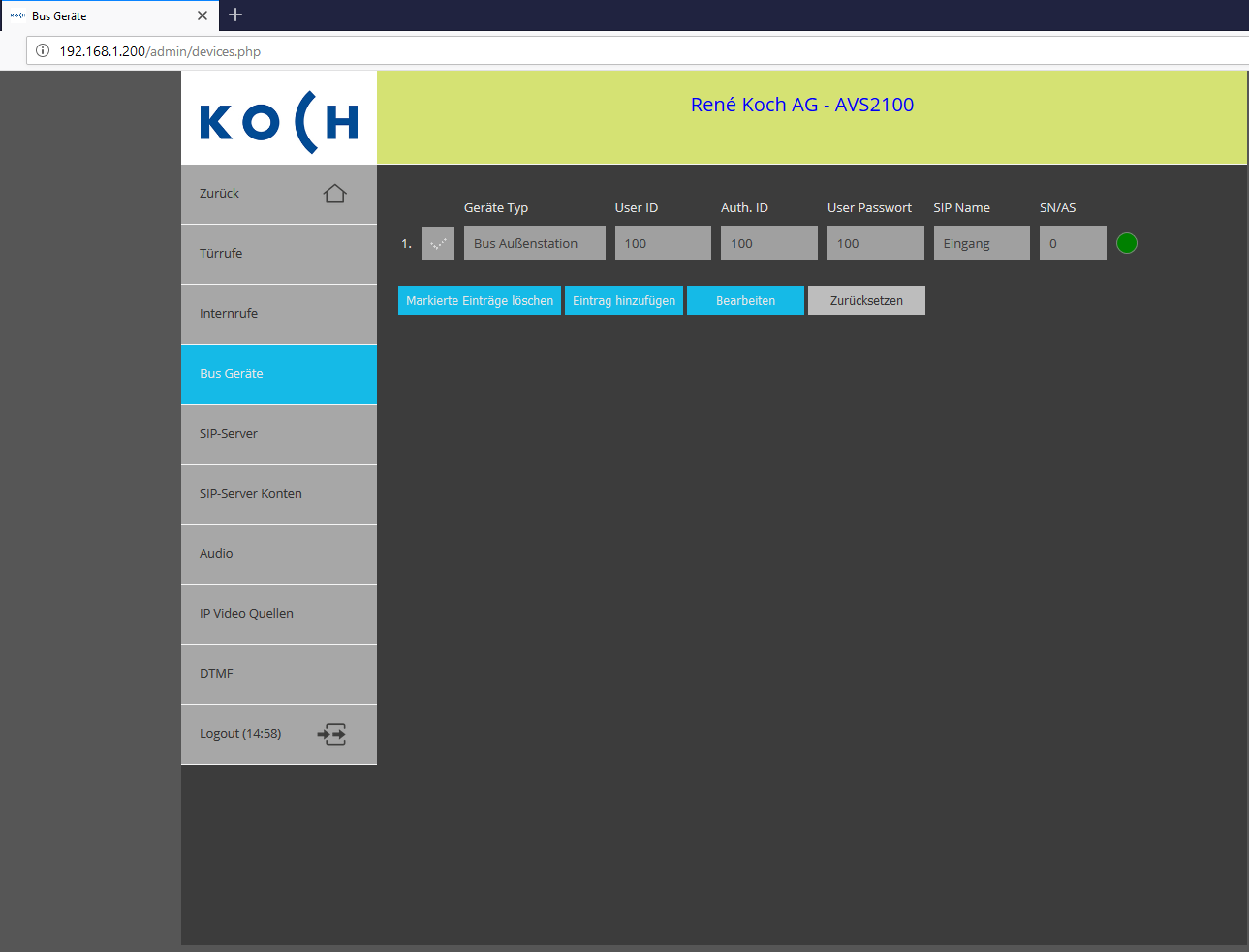

As bus devices, the outstations with the corresponding logon data are created.

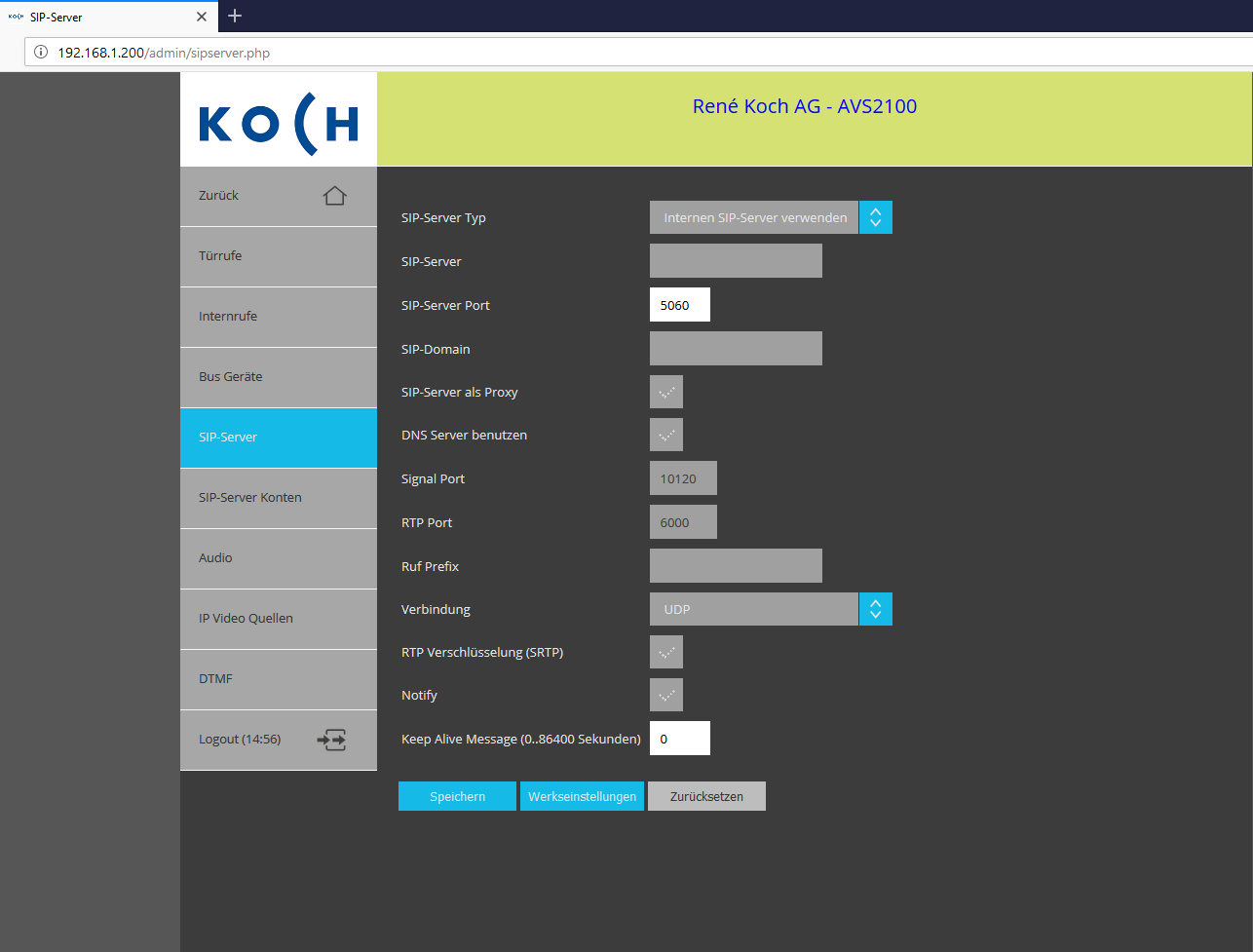

Setup SIP-Server:

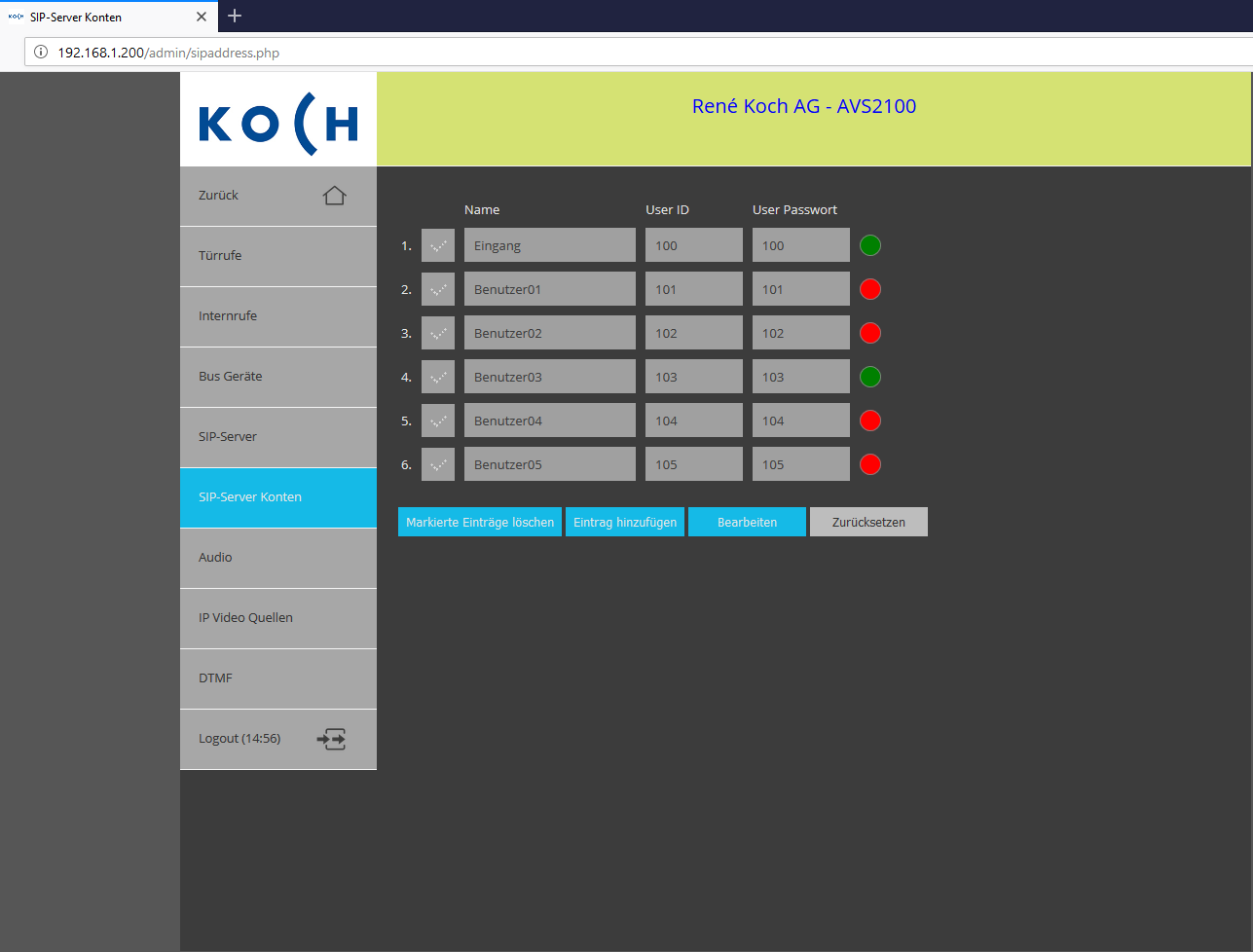

Successfully logged in clients will be marked with a green dot behind the user password.

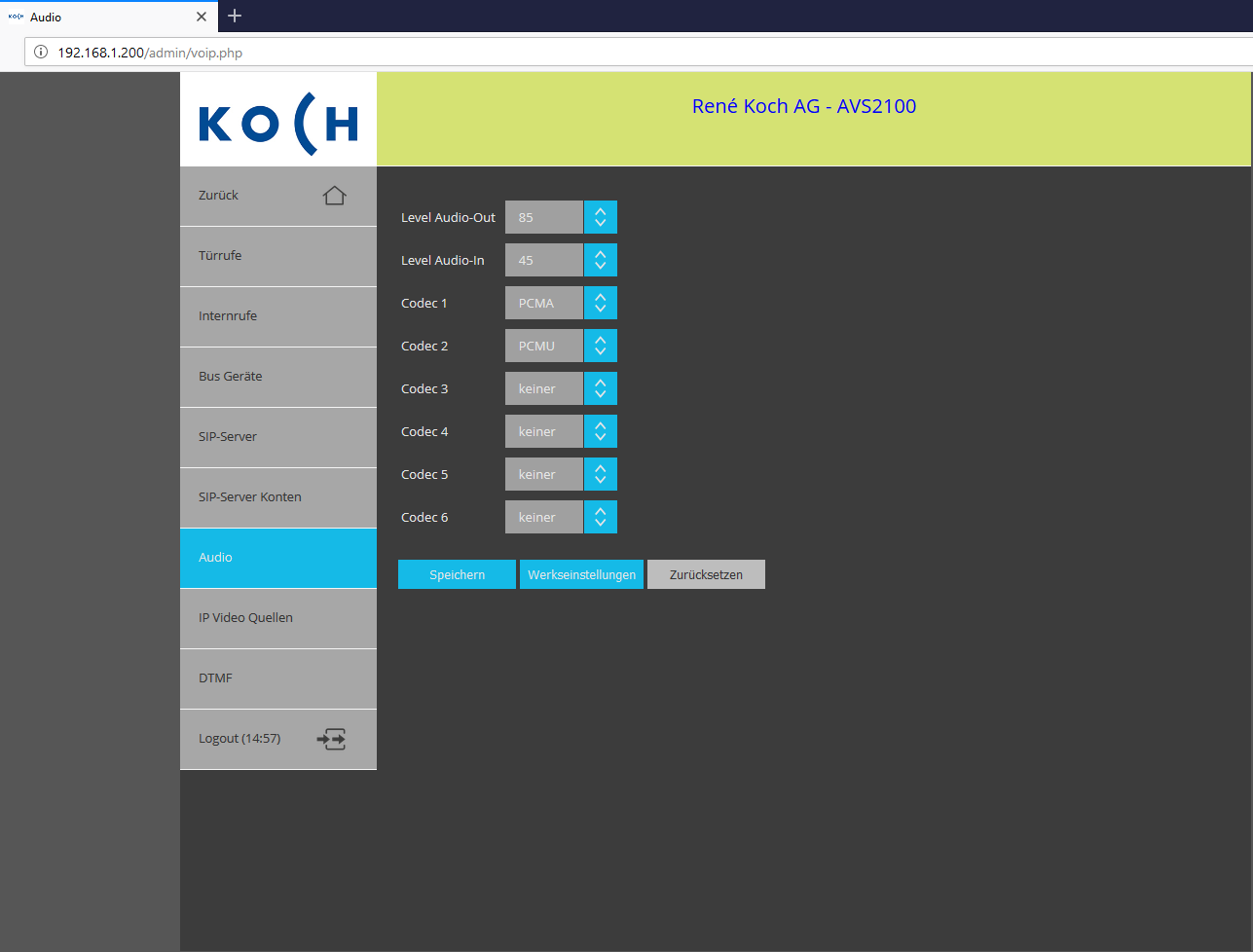

According to the manufacturer, the levels for Audio Out and Audio In should only be changed at the outdoor station. The audio codec PCMA is recommended.
For the video stream the codec H264 is used. The path to the stream in this example is "http://192.168.1.200:12000/mjpeg?".

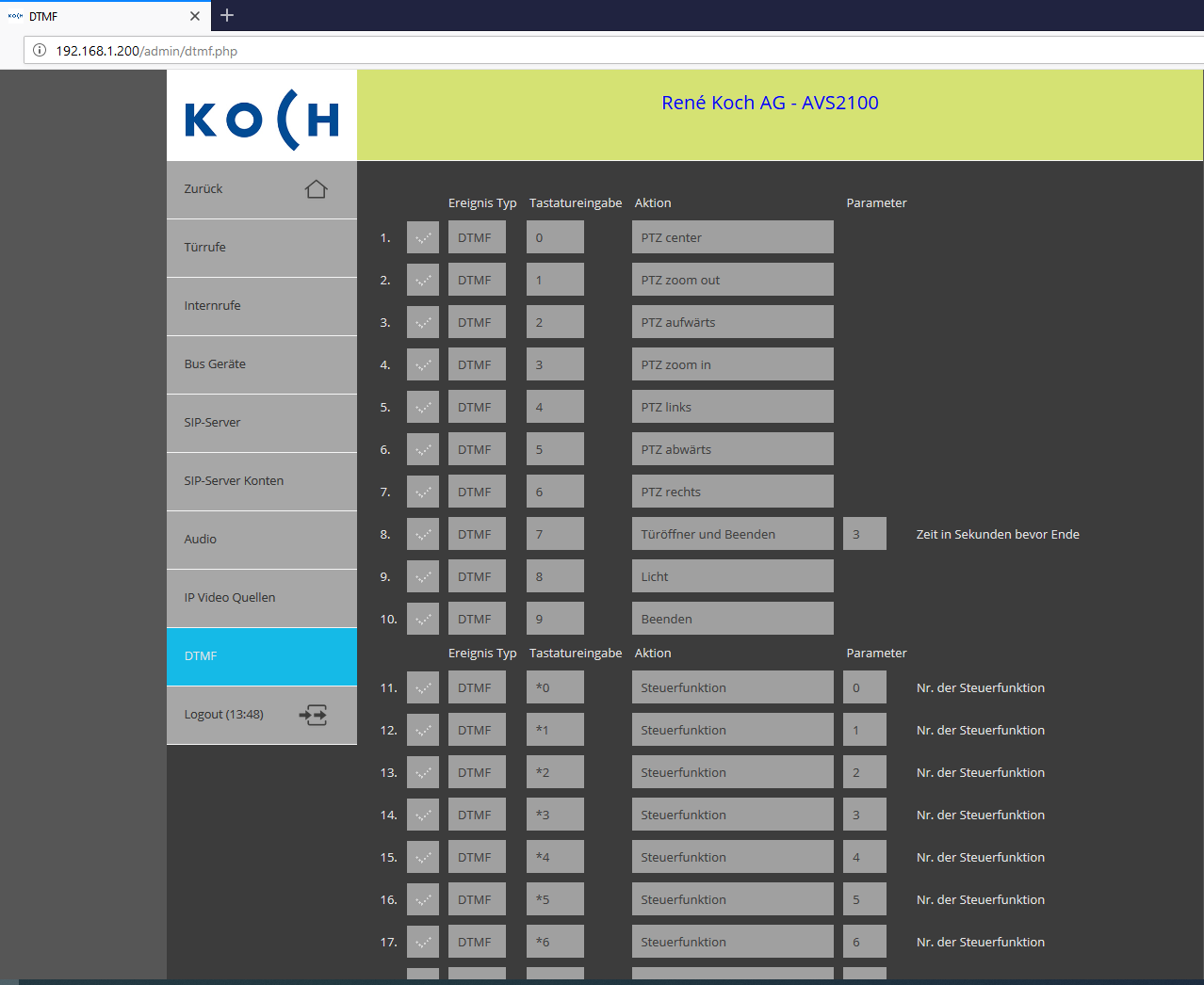

Setup DTMF function:
EisBaer setup
Properties of the component
Name |
Standard |
Function |
|---|---|---|
Registration required |
x |
If the check mark is set, the video door station must be registered with the proxy (switchboard / exchange) with name and password. |
Display name |
103 |
Any name that is displayed when connecting to the remote station. |
User name |
103 |
Name of the user in the server domain. Mostly identical to the registration name. |
Register name |
103 |
Name for registration at the proxy. |
Password |
103 |
Password for registration at the proxy server (switchboard / exchange). |
Domain Server Host |
192.168.1.200 |
Domain of the Proxy, sometimes referred to as Realm. In many cases, the IP address of the proxy is also entered here. |
Proxy IP |
192.168.1.200 |
IP address of the proxy server (switchboard / exchange). |
Proxy Port |
5060 |
SIP port of the proxy server for registration. |
Codecs |
PCMA und H264 |
Audio Codec PCMA and Video Codec H264 must come first. |
DTMF Signal door opener |
7 |
DTMF signal tone sent to open the door. In this example 7. |
DTMF Signal light switch |
8 |
DTMF Signal tone that is sent to switch the lighting. In this example 8. |
Number/Name station |
100 |
Internal number or name of the station on the proxy server (switchboard / exchange). |
IP Camera URL/path to the MJPG-Stream |
|
URL / path to the MJPG stream in the IP camera, e.g. http: // <IP> / <xxxx.mjpg path /> |
IP camera user name |
|
Username to log in to the camera if anonymous access is not possible. |
IP camera Password |
|
Password of the user to log in to the camera. |
IP camera pictures per second (0-20) |
5 |
Refresh rate of the image display. The set number of pictures of the camera is displayed, per second. 0 = speed of IP camera |
Testing 08/2019
Firmware Version Device: 1.0.0
Firmware Version Engine: 1.0.2-756ae1fe-rkag
Firmware Version uC: 0.3.4
Hardware Version: 2
