The IP built-in door speaker ASI91000 is a SIP-based door station.
To set up the SIP client, the software "Configuration and service software configo IP" is required. This can be downloaded from the homepage of TCS.
Several tabs are available in the TCS Configo IP. The "Audio" tab is used to adjust the volume and microphone sensitivity.

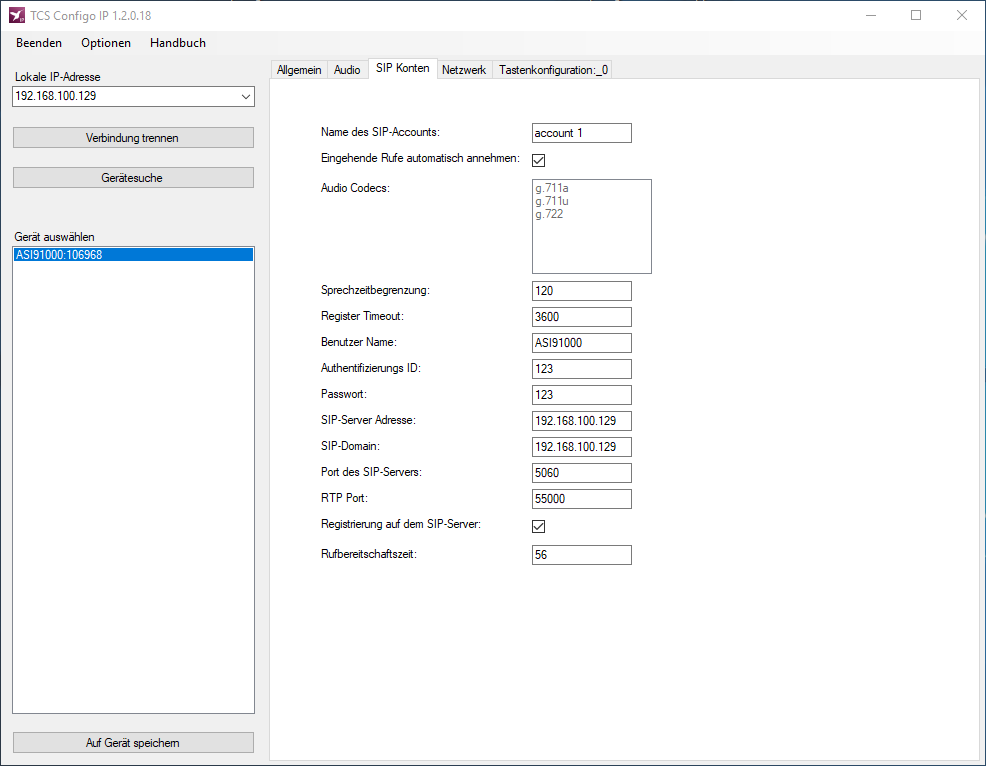

The tab "SIP account" establishes the connection to a SIP server.

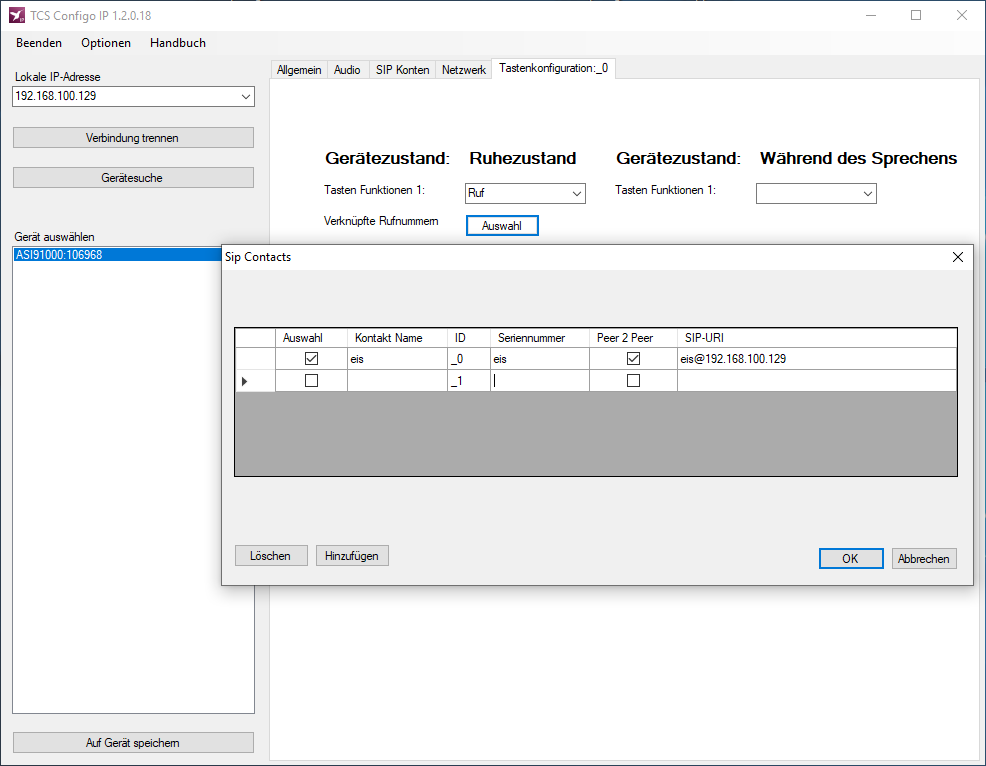

In the key configuration tab, a "call" is set up so that the outstation calls a SIP subscriber when ringing.
In this example, the SIP client is called "eis" when key 1 is pressed.
