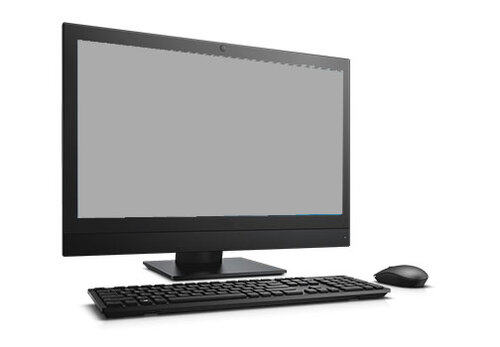

EisTouch Desktop version 23" €2854.81 incl. GST. €2399.00 excl. GST. 23 "All-In-One EisTouch desktop version with Full HD and EisBaer SCADA visualisation The EisTouch All-In-One - Touch Panel with built-in PC as a complete solution.   Ready assembled and installed EisBaer SCADA preinstalled (without project license) EISTOUCH AIO - TECHNICAL specification TOUCHSCREEN MULTITOUCH23" RESOLUTION (PIXEL)1920 x 1080 DISPLAY FRONT-DIMENSIONS588 x 387 x 55 ALUMINUM ANODIZED FRAMEsilver or black USB/DVI/VGA1/1/1 MICROPHONE STEREO-SPEAKER FRONT-USB1 DIMENSION INCL. STAND  (W x L x H)588 x 444 x 200 POWER SUPPLY 230V AC PC onboard (INCLUDED) CPUIntel® Core i5-3470T (2x 3.2 GHz) RAM4GB HDD120 GB SSD GRAPHIC CARDIntel® HD 2500 DVD-RW BURNER POWER CONSUMPTIONmax. 135 Watt OPERATING SYSTEMWindows 10 MIC IN/AUDIO OUT1/1 eSATA1 USB 2.04 USB 3.02 WEBCAM WLAN802.11 n/g/b BLUETOOTH CARDREADER 4IN1 LAN1x Gigabit ACCESSORIES AIO (optional) VESA BRACKETon request KEYBOARD/MOUSE SET Order

EISTOUCH AIO - TECHNICAL specification

TOUCHSCREEN MULTITOUCH

23"

RESOLUTION (PIXEL)

1920 x 1080

DISPLAY FRONT-DIMENSIONS

588 x 387 x 55

ALUMINUM ANODIZED FRAME

silver or black

USB/DVI/VGA

1/1/1

MICROPHONE

STEREO-SPEAKER

FRONT-USB

1

DIMENSION INCL. STAND  (W x L x H)

588 x 444 x 200

POWER SUPPLY 230V AC

PC onboard (INCLUDED)

CPU	Intel® Core i5-3470T (2x 3.2 GHz)

RAM

4GB

HDD	120 GB SSD

GRAPHIC CARD

Intel® HD 2500

DVD-RW BURNER

POWER CONSUMPTION

max. 135 Watt

OPERATING SYSTEM

Windows 10

MIC IN/AUDIO OUT

1/1

eSATA

1

USB 2.0

4

USB 3.0

2

WEBCAM

WLAN	802.11 n/g/b

BLUETOOTH

CARDREADER 4IN1

LAN	1x Gigabit

ACCESSORIES AIO (optional)

VESA BRACKET

on request

KEYBOARD/MOUSE SET

PDF
