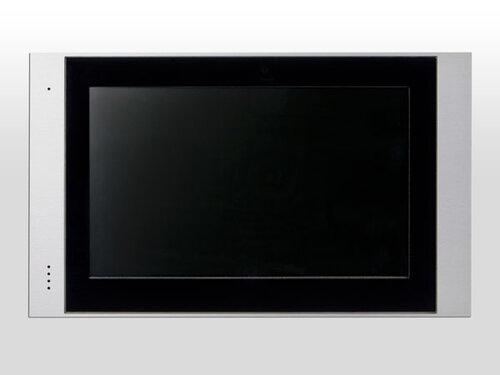

EisTouch HI 4G 16"  €4520. 81 incl. GST. €3799.00  excl. GST. 16" Flush mount touchscreen with HI server and EisBaer SCADA visualisation The EisBaer EisTouch 4G - series: high-quality and shapely. Exclusive combination of aluminum and glass.   Ready assembled and installed EisBaer SCADA preinstalled (without project license) EISTOUCH 4G - Technical Specification TOUCHSCREEN CAPACITIVE 16"  RESOLUTION (PIXEL) 1366 x 768  DISPLAY FRONT-DIMENSIONS462 x 272 mm  ALUMINIUM-FRONT silver or black USB/DVI/VGA 1/1/1  MICROPHONE STEREO-SPEAKER FRONT-USB 1 FM-WALLBOX FM-WALLBOX DIMENSIONS (W x L x H) 452 x 250 x 80  POWER SUPPLY 230V AC / 12V DC  HI-SERVER 3.0 (INCLUDED)  CPU Intel® Core i3-5010U 2x2.1GHz RAM4 GB HDD 60 GB SSD  GRAPHIC CARDIntel® HD FANLESS POWER CONSUMPTIONmax. 14 Watt  OPERATING SYSTEMWindows 10 64Bit  HDMI2 MIC IN/AUDIO OUT 1/1  USB 2.02 USB 3.02 LAN2x Gigabit ACCESSORIES 4G (optional) MOUNTING KIT DRY WALL WARRENTY EXTENSION / PRE-REPLACEMENT Order

EisTouch HI 4G 22"  €5353. 81 incl. GST. €4499.00  excl. GST. 22" Flush mount touchscreen with HI server and EisBaer SCADA visualisation The EisBaer EisTouch 4G - series: high-quality and shapely. Exclusive combination of aluminum and glass.   Ready assembled and installed EisBaer SCADA preinstalled (without project license) EISTOUCH 4G - Technical Specification TOUCHSCREEN CAPACITIVE 22"  RESOLUTION (PIXEL) 1920 x 1080  DISPLAY FRONT-DIMENSIONS595 x 340 mm  ALUMINIUM-FRONT silver or black USB/DVI/VGA 1/1/1  MICROPHONE STEREO-SPEAKER FRONT-USB 1 FM-WALLBOX FM-WALLBOX DIMENSIONS (W x L x H) 587 x 327 x 80  POWER SUPPLY 230V AC / 12V DC  HI-SERVER 3.0 (INCLUDED)  CPUIntel® Core i3-5010U 2x2.1GHz RAM4 GB HDD 60 GB SSD  GRAPHIC CARDIntel® HD FANLESS POWER CONSUMPTIONmax. 14 Watt  OPERATING SYSTEMWindows 10 64Bit  HDMI2 MIC IN/AUDIO OUT 1/1  USB 2.02 USB 3.02 LAN2x Gigabit ACCESSORIES 4G (optional) MOUNTING KIT DRY WALL WARRENTY EXTENSION / PRE-REPLACEMENT Order

EisTouch HI 4G 24" €7318. 50 incl. GST. €6150.00  excl. GST. 24" Flush mount touchscreen with HI server and EisBaer SCADA visualisation The EisBaer EisTouch 4G - series: high-quality and shapely. Exclusive combination of aluminum and glass.    Ready assembled and installed EisBaer SCADA preinstalled (without project license) EISTOUCH 4G - Technical Specification TOUCHSCREEN CAPACITIVE 24" RESOLUTION (PIXEL) 1920 x 1200 DISPLAY FRONT-DIMENSIONS ALUMINIUM-FRONT silver or black USB/DVI/VGA 1/1/1 MICROPHONE STEREO-SPEAKER FRONT-USB 1 FM-WALLBOX FM-WALLBOX DIMENSIONS (W x L x H)  POWER SUPPLY 230V AC / 12V DC  HI-SERVER 3.0 (INCLUDED)  CPUIntel® Core i3-5010U 2x2.1GHz RAM4 GB HDD 60 GB SSD GRAPHIC CARDIntel® HD FANLESS POWER CONSUMPTIONmax. 14 Watt OPERATING SYSTEMWindows 10 64Bit HDMI2 MIC IN/AUDIO OUT 1/1 USB 2.02 USB 3.02 LAN2x Gigabit ACCESSORIES 4G (optional) MOUNTING KIT DRY WALL WARRENTY EXTENSION / PRE-REPLACEMENT Order

EISTOUCH 4G - Technical Specification

TOUCHSCREEN CAPACITIVE

16"

22"

24"

RESOLUTION (PIXEL)

1366 x 768

1920 x 1080

1920 x 1200

DISPLAY FRONT-DIMENSIONS

462 x 272 mm

595 x 340 mm

ALUMINIUM-FRONT

silver or black

silver or black

silver or black

USB/DVI/VGA

1/1/1

1/1/1

1/1/1

MICROPHONE

STEREO-SPEAKER

FRONT-USB

1

1

1

FM-WALLBOX

FM-WALLBOX DIMENSIONS (W x L x H)

452 x 250 x 80

587 x 327 x 80

POWER SUPPLY 230V AC / 12V DC

HI-SERVER 3.0 (INCLUDED)

CPU

Intel® Core i3-5010U 2x2.1GHz

Intel® Core i3-5010U 2x2.1GHz

Intel® Core i3-5010U 2x2.1GHz

RAM

4 GB

4 GB

4 GB

HDD

60 GB SSD

60 GB SSD

60 GB SSD

GRAPHIC CARD

Intel® HD

Intel® HD

Intel® HD

FANLESS

POWER CONSUMPTION

max. 14 Watt

max. 14 Watt

max. 14 Watt

OPERATING SYSTEM

Windows 10 64Bit

Windows 10 64Bit

Windows 10 64Bit

HDMI

2

2

2

MIC IN/AUDIO OUT

1/1

1/1

1/1

USB 2.0

2

2

2

USB 3.0

2

2

2

LAN

2x Gigabit

2x Gigabit

2x Gigabit

ACCESSORIES 4G (optional)

MOUNTING KIT DRY WALL

WARRENTY EXTENSION / PRE-REPLACEMENT
