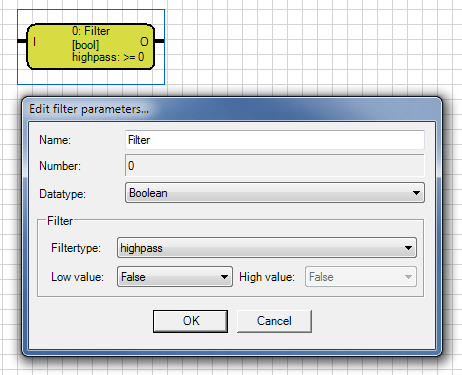

A filter can pass values at the input with a low-, high- or band-pass function to the output. When filter rule is fulfilled, the input values are passed to the output. If it is not fulfilled, there is no
reaction at the output.
Filtertype
High pass >= |
When the input value is higher or equal than the value of the low value, the Input signal is passed to the output. |
Low pass <= |
When the input value is lower or equal than the value of the high value, the Input signal is passed to the output. |
Band pass - |
WeWhen the input value is between the value of the low and high value, the Input signal is passed to the output. |
The input is marked with an I and, and is top left at the element. The output is characterized by an O, is top right of the element.
The name of the gate can be chosen freely.
Note: For input and output all data types are allowed.
