Inverter

An Inverter sets the output value to 1 if the inputs has the value 0.

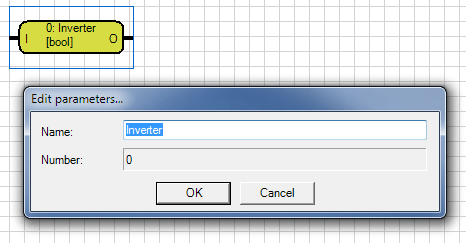

The input is marked with an I and, and is top left at the element. The output is characterized by an O, is top right of the element. The name of the gate can be chosen freely.



Note: For the input and the output of the Inverter are just 1-bit objects (Boolean) allowed.



Inverter
